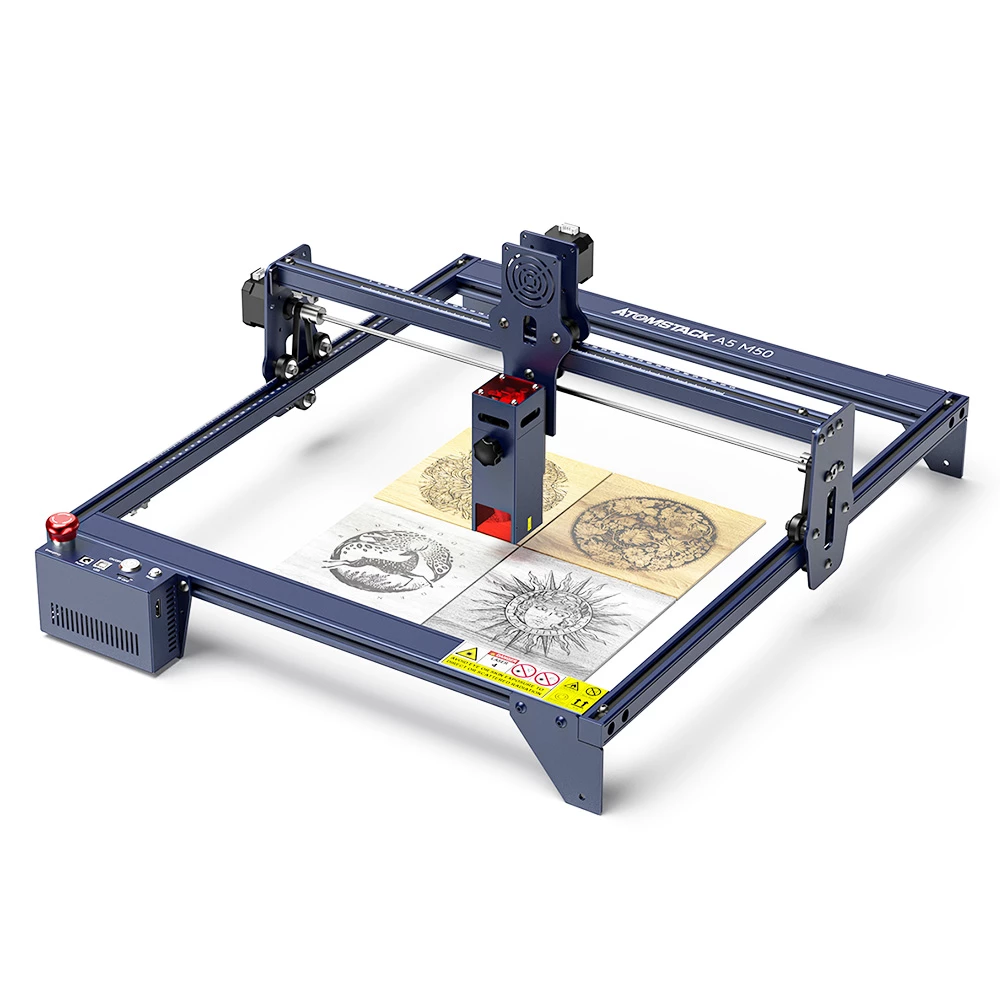

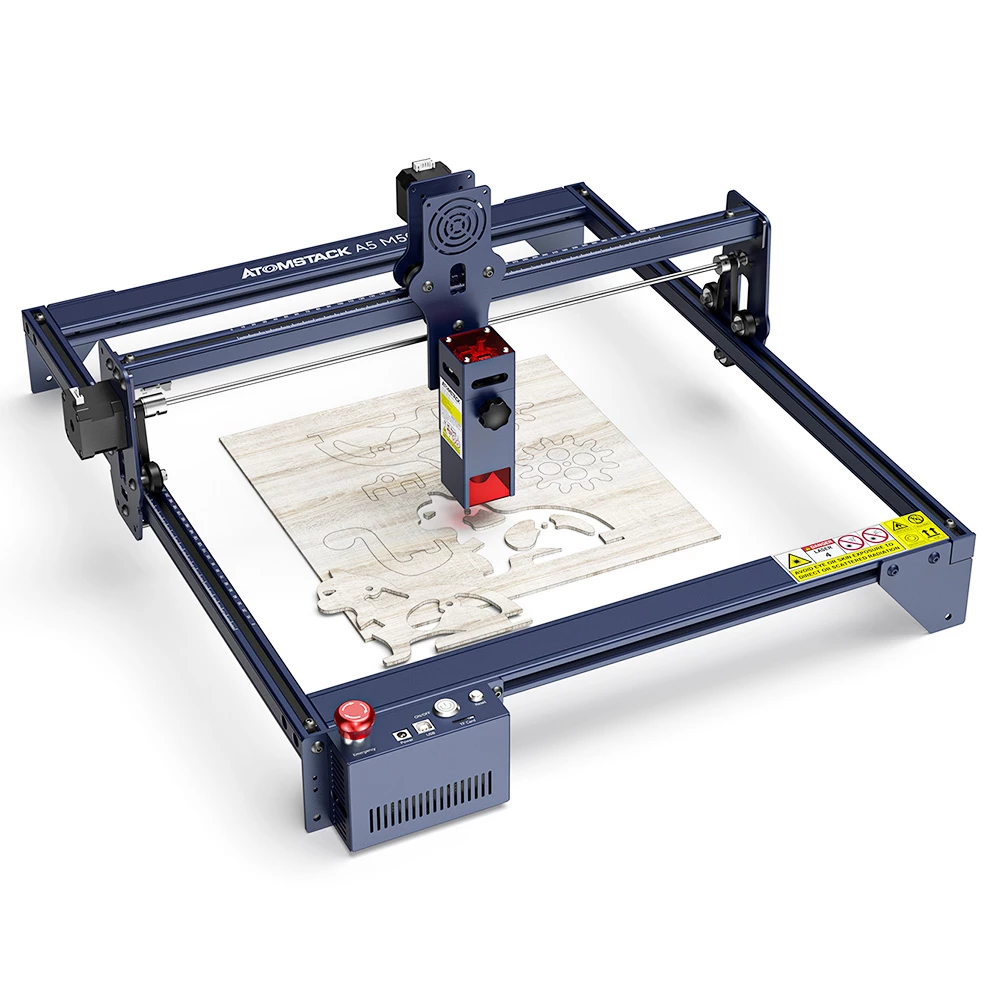

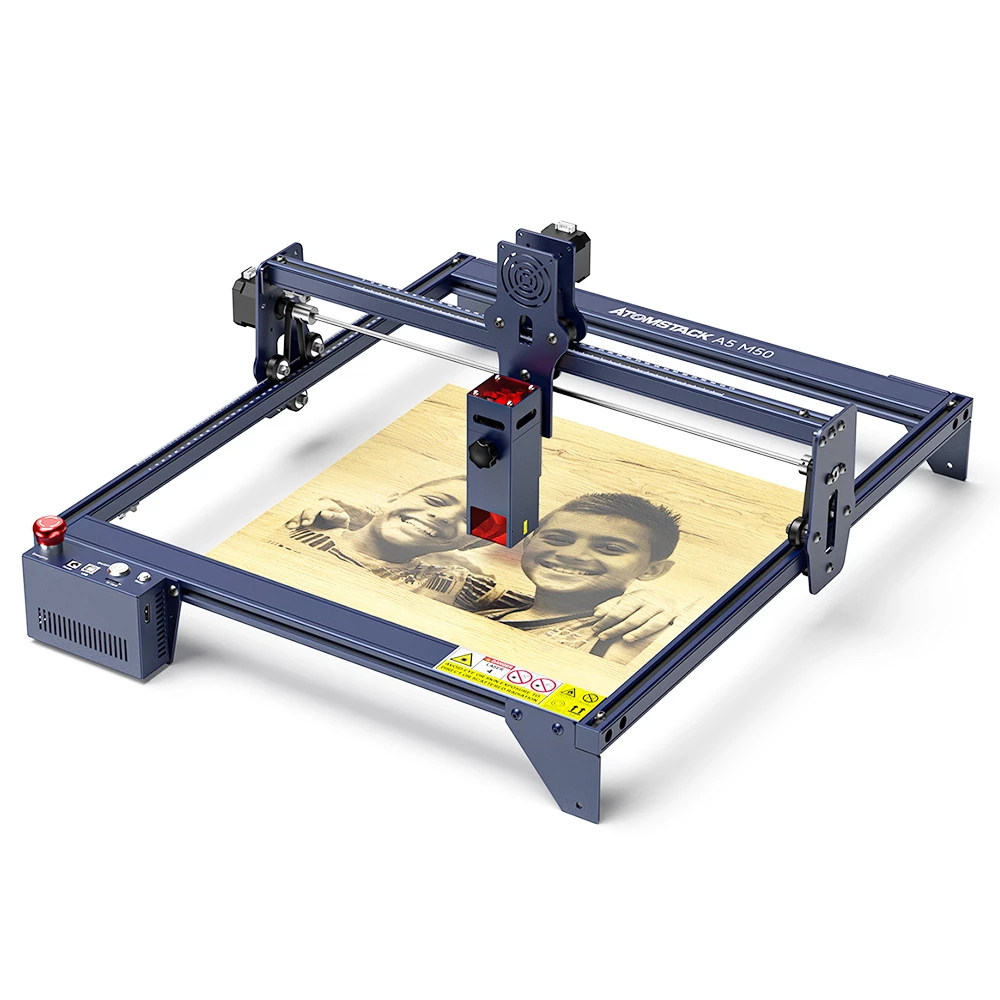

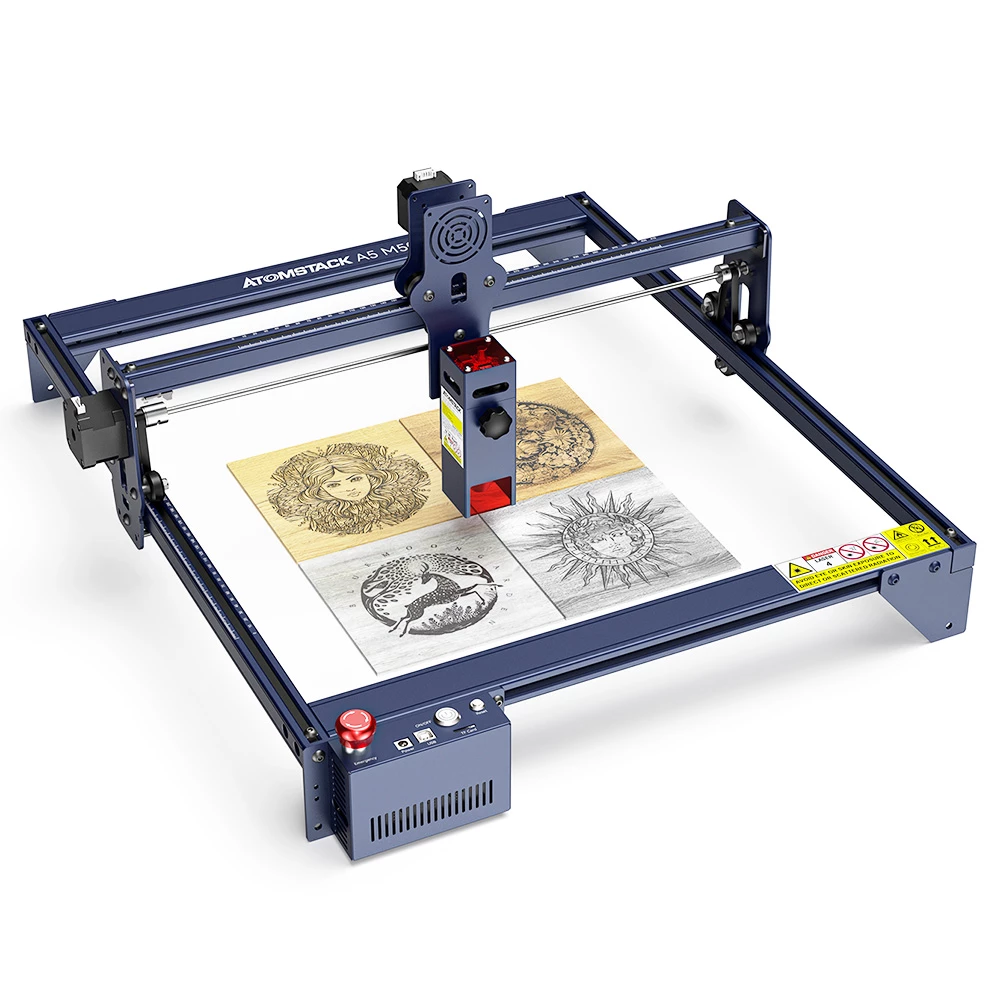

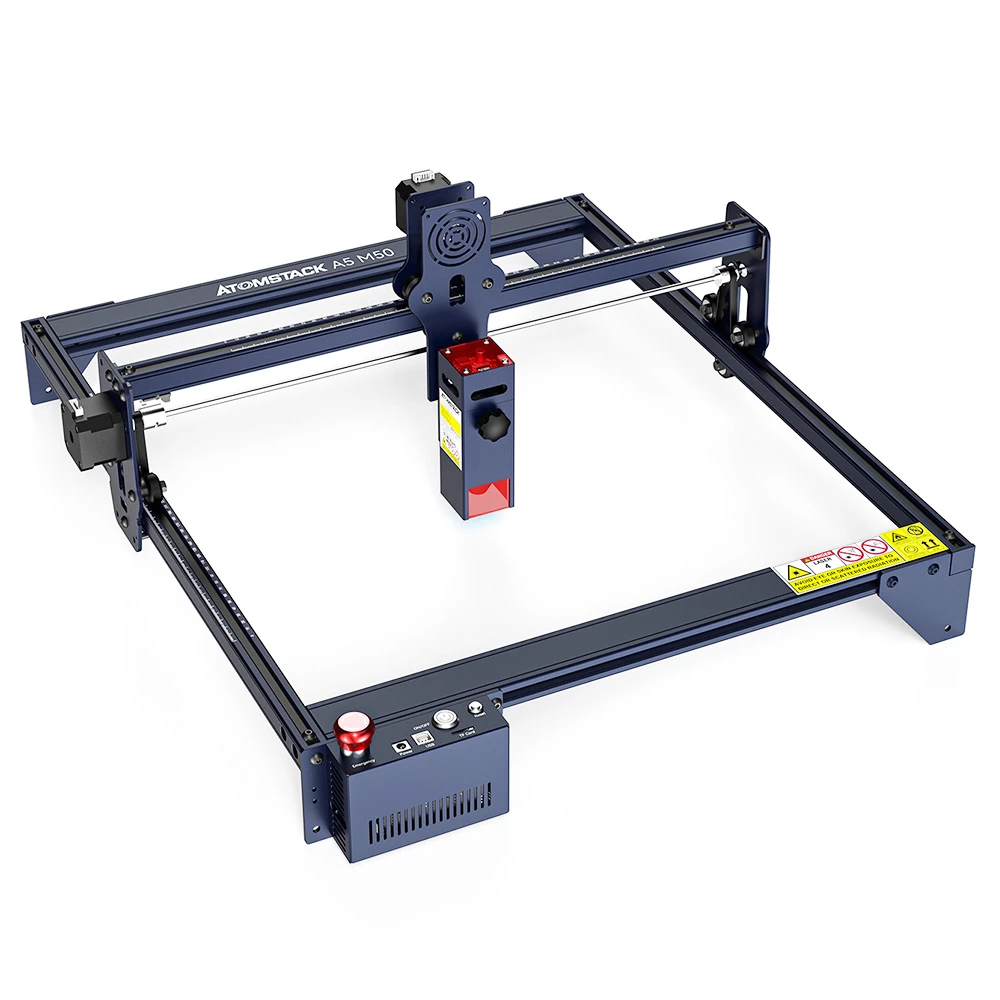

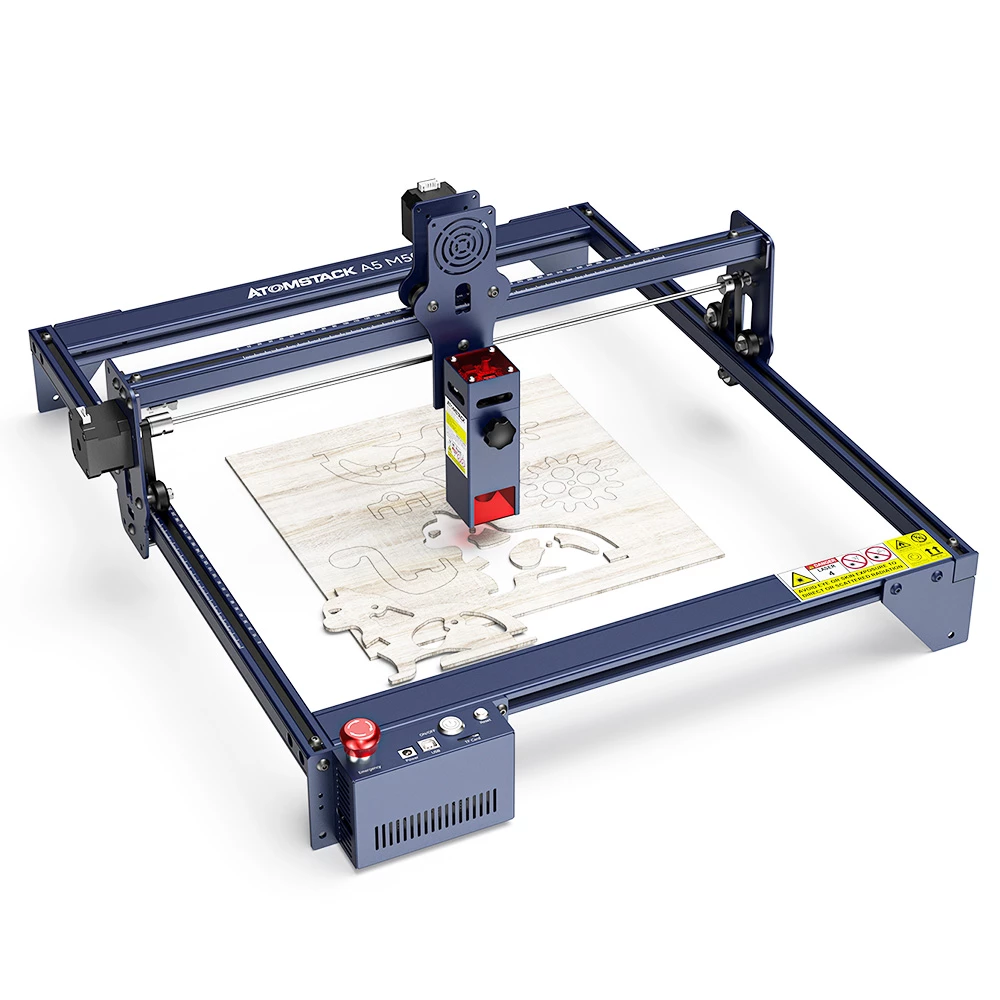

ATOMSTACK A5 M50 Laser Cutter Engraver, 5-5.5W Optical Power, 40W Electric Power, Fixed Focus, Quadruple Lens Compression Spot, Cut 15mm Wood, 410x400mm

Highlights

Quadruple Lens Compression Spot
The A5 M50 laser cutter and engraver machine feature quadruple lens compression technology, 5-5.5W optical power, and fixed focus compressed spots. The spot is smaller and the energy is more concentrated, which can create more refined engraving products. The laser can easily cut 15mm thick wood and 15mm black acrylic; it can directly engrave mirror stainless steel metal and ceramics and can achieve the effect of a 100W CO₂ laser engraving machine.
Support Offline Engraving
Equipped with ATOMSTACK terminal interface, you can use the terminal directly through the interface, so as to realize offline engraving and mobile APP control.
Wide Applicable Materials
It can engrave on wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, lacquered metal, and ceramics. You can engrave your own logo for your favorite items.
Perfectly Compatible System
A5 M50 laser engraving machine can be compatible with LaserGRBL or LightBurn. You can also use the Atomstack APP to control it on your phone.
Smart Limit Switch Design
Limit switches are installed on both X-axis and Y-axis. When the engraving machine stroke is at its maximum, the limit switch will be automatically triggered to protect the laser and avoid collisions.
Eye-protection Flame-retardant Filter Panoramic Glass
The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly watch laser engraving.
Easy Assembly
Everything is neatly packaged and the smaller pieces are pre-separated into steps that match the instructions. Each assembly step has its own separate package of fittings used in that step. all parts are marked with steps so there is no confusion. The entire setup was about 30 minutes.

Specification

General	Brand: ATOMSTACK Type: Laser Engraving Machine Model: A5 M50
Specification	Item Model Number: A5 M50 40W Engraving Area: 410x400mm Carving Materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel Cutting Material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather; Electric Power: 40W Laser Output Power: 5-5.5W Wave Length: 445 ± 5nm Engraving Accuracy: 0.01mm Focusing Method: fixed focus laser, no need to focus Laser Protective Cover: Protect the user’s eyes and prevent pets from grabbing the laser spot Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system Input Format: NC, BMP, JPG, PNG, DXF, etc. Data Transmission Method: USB connection. Input Voltage: AC100-240V, 50/60Hz Output Voltage: DC12V, 5A
Weight & Size	Product Weight: 3.426kg Package Weight: 5.92kg Finished Engraver Size(L x W x H): 57x60x27cm Package Size(L x W x H): 59x34x12.2cm
Package Contents	2 x Support Beam 1 x Y-axis Right Slide Rail 1 x Y-axis Left Slide Rail 1 x X-axis Rail 3 x Foot Bracket 1 x Laser Head 1 x Connecting Plate 1 x Control Box 1 x Power Adapter 1 x Power Cable 1 x Synchronous Belt 1 x Metal Mat Board 1 x Fixed Focus Film 1 x Mounting Screws 3 x Wood Chips 3 x  Acrylic Sheet 1 x HDMI Cable 1 x USB Card and Card Reader 1 x Toolkit 1 x Wire Tie 1 x Brush 1 x USB Cable 1 x Dust-free Cloth 1 x User Manual
