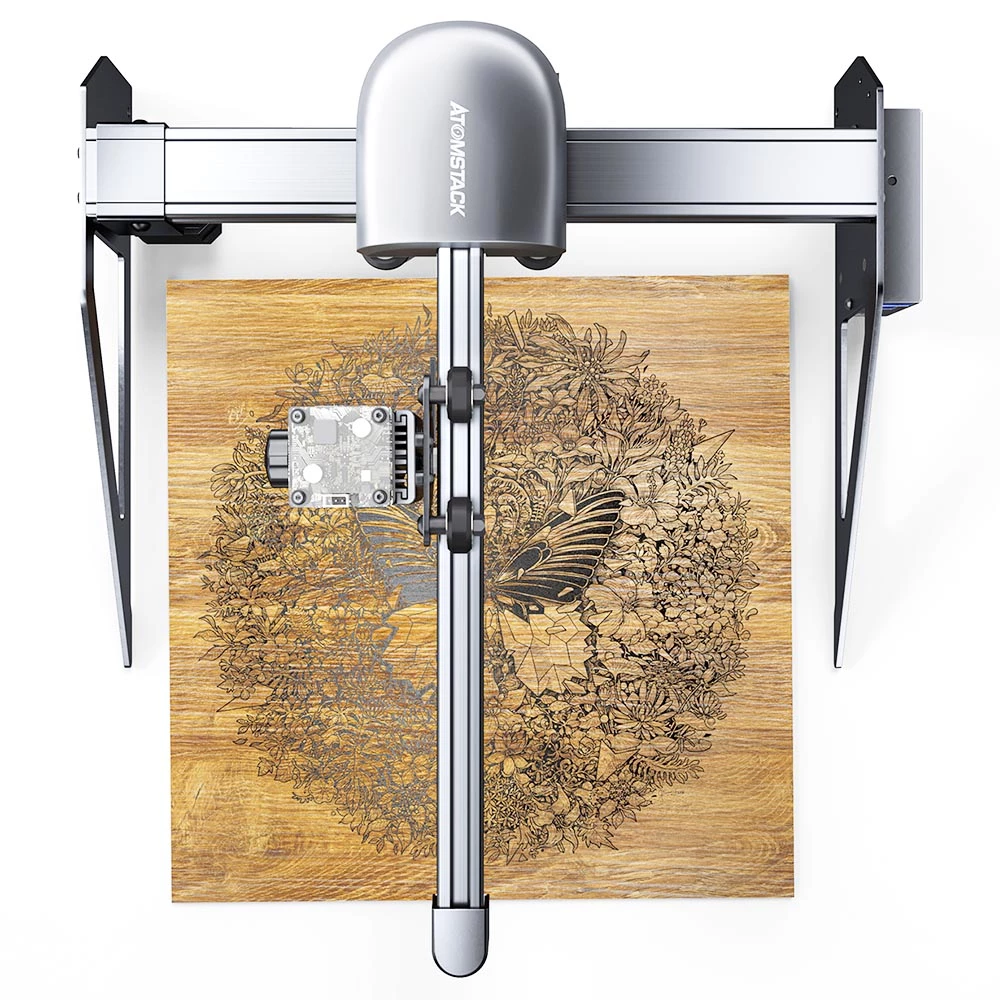

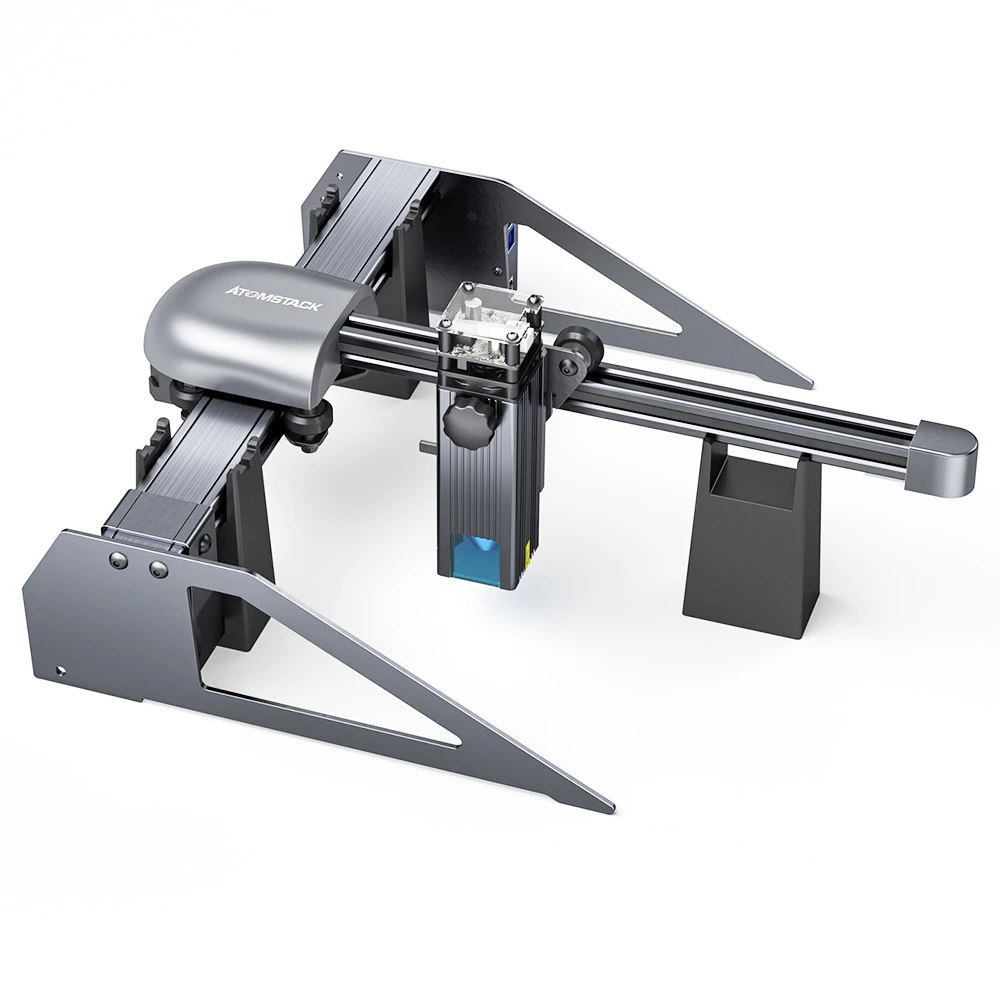

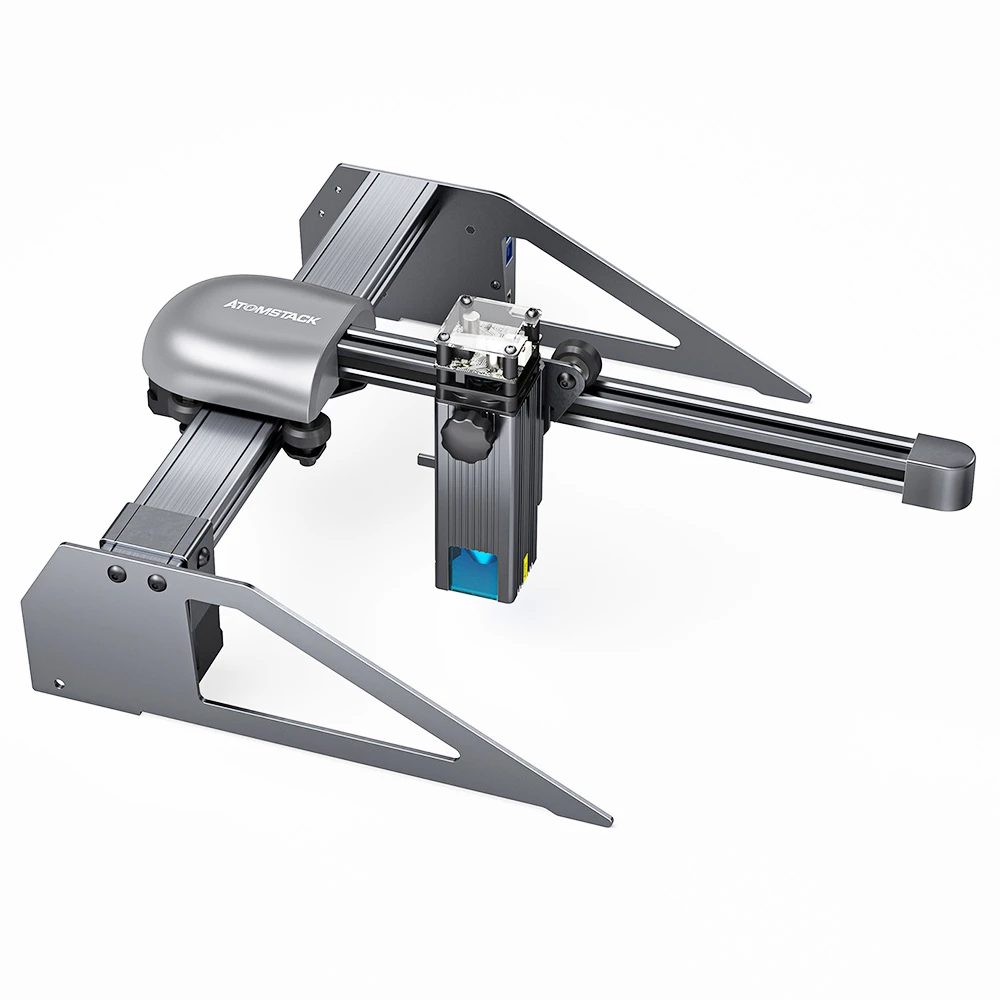

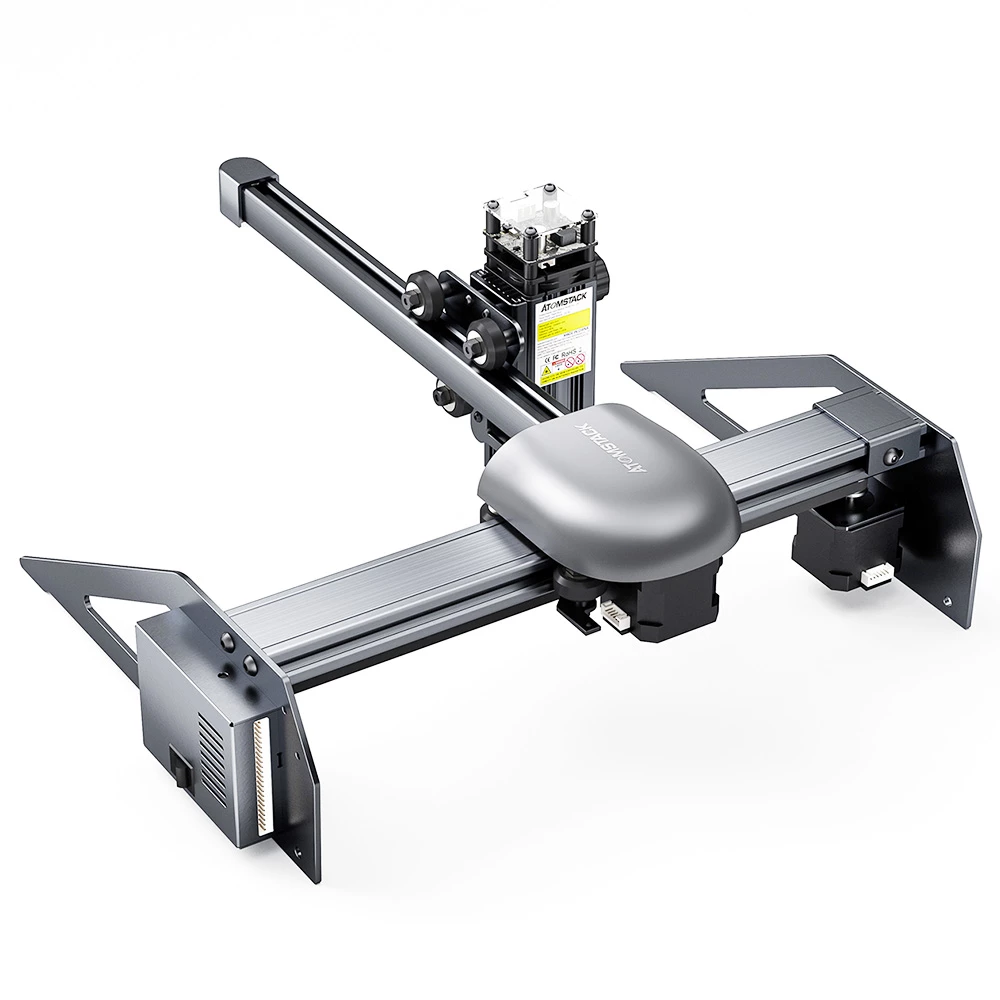

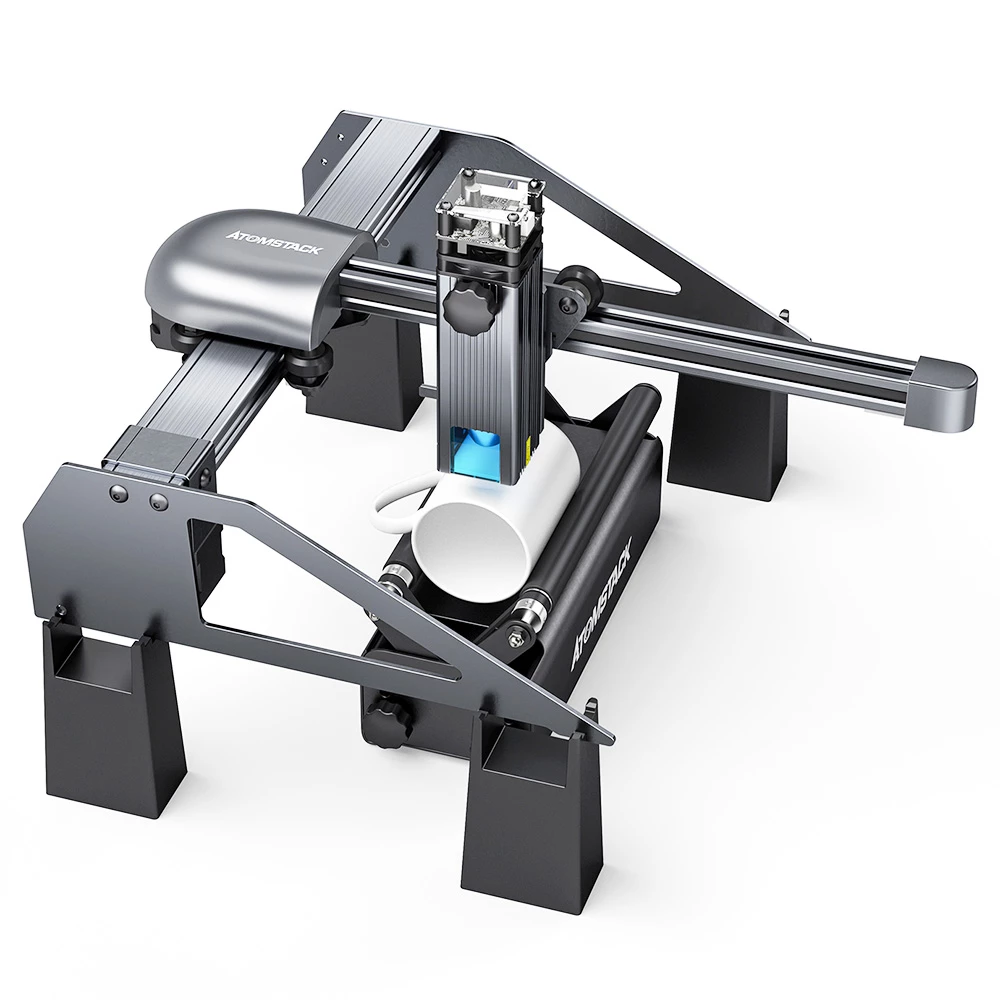

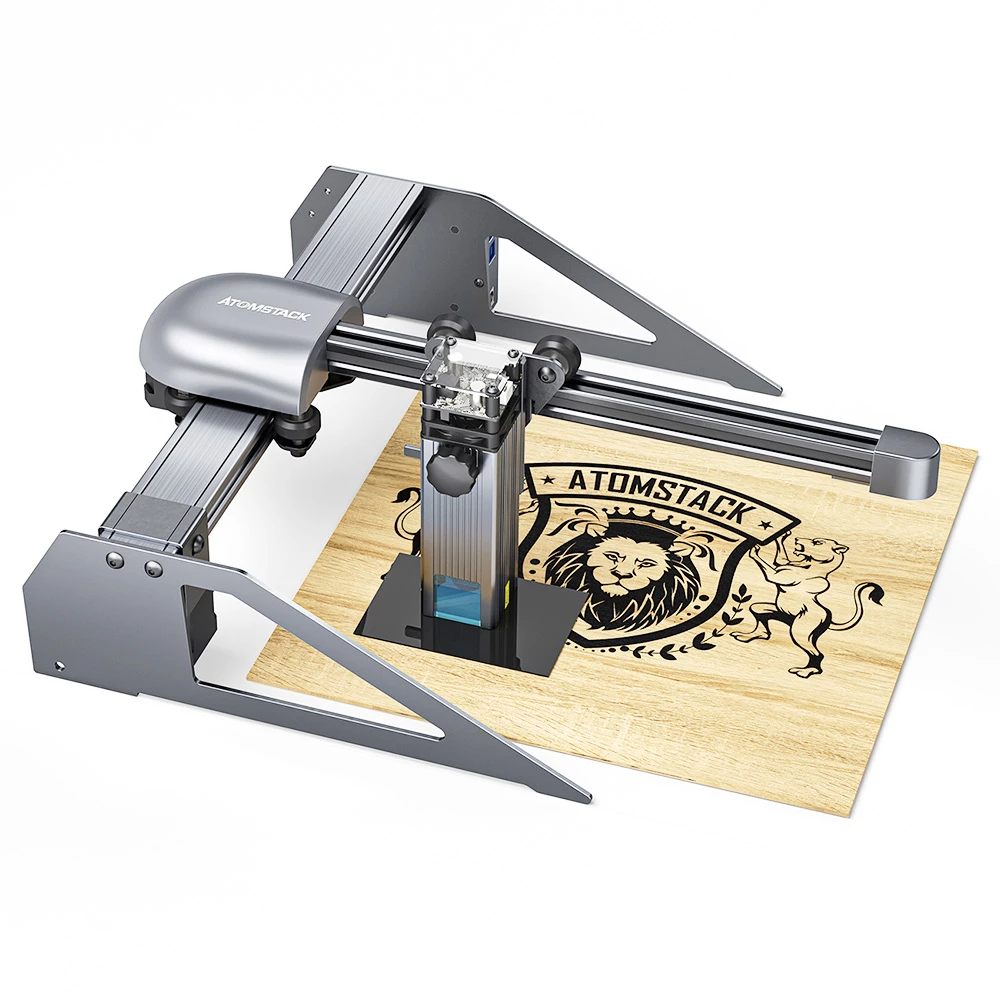

ATOMSTACK P7 M30 5W Portable Laser Engraver Cutter, 0.01mm Accuracy, Engraving Area 200*200mm

Highlights

Eye-Protection Design

The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame-retardant and safer to use.

Robust and Easy-to-Install Structure Design

The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.

Upgraded High-Performance Fixed-Focus Laser

Engraving can be done without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.02mm², which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of the fixed-focus laser is more stable than that of the zoom laser.

Wide Compatibility

The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

Precise Scale Lines Axis

There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 200*200mm large area engraving interval can meet your various engraving needs.

New Upgraded Ultra-Fine Compression Laser

The laser adopts 4-fold lens group collimation and focuses technology, the optical power is 4.5~5.5W, the laser focus area is reduced to 0.02mm², the high-density laser can easily cut 10mm thick wood boards and 6-8mm black acrylic; Can directly engrave mirror stainless steel metal and ceramics.

Integral Screw Rod

The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

New laser with Knob

It is more convenient and quick to adjust the height of the laser.

Equipped with a Horizontal Gyroscope

It stops working immediately when it is tilted to ensure your safety

Specification

General	Brand: ATOMSTACK Type: Laser Engraving Machine Model: ATOMSTACK P7 M30 Color: Black
Specification	Engraving Area: 200x200mm Engraving Materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel; Cutting Material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather; Electric Power Output: 30W Laser Power Output: 4.5-5.5W Wave Length: 445 +/- 5nm Engraving Accuracy: 0.01mm Focusing Method: fixed focus laser, no need to focus Laser Protective Cover: Protect the user’s eyes and prevent pets from grabbing the laser spot. Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. Input Format: NC, BMP, JPG, PNG, DXF, etc. Data Transmission Method: USB connection. Input Voltage: AC100-240V, 50/60Hz Output Voltage: DC12V, 5A Certification: CE FCC RoHS FDA PSE
Weight & Size	Package Weight: 4.2kg Product Size(L x W x H): 382x420x146mm
Package Contents	4 x Assembly Block  1 x Laser 1 x Laser Slide 4 x Foot Pad Foam 1 x USB Cable 1 x Open Wrench 1 x Y-axis Belt Assembly 1 x Marker  5 x Cable Tie 4 x Screw 2 x Hexagonal Wrench 3 x Wood Chips 1 x Fixed Focus Film 3 x Acrylic Sheet 1 x Cutting Pad  1 x Lower Support Foot 1 x Upper Support Foot 1 x Control Box 1 x X-axis Assembly 1 x Y-axis Assembly 1 x Power Adapter 1 x Power Cord 1 x User Manual
