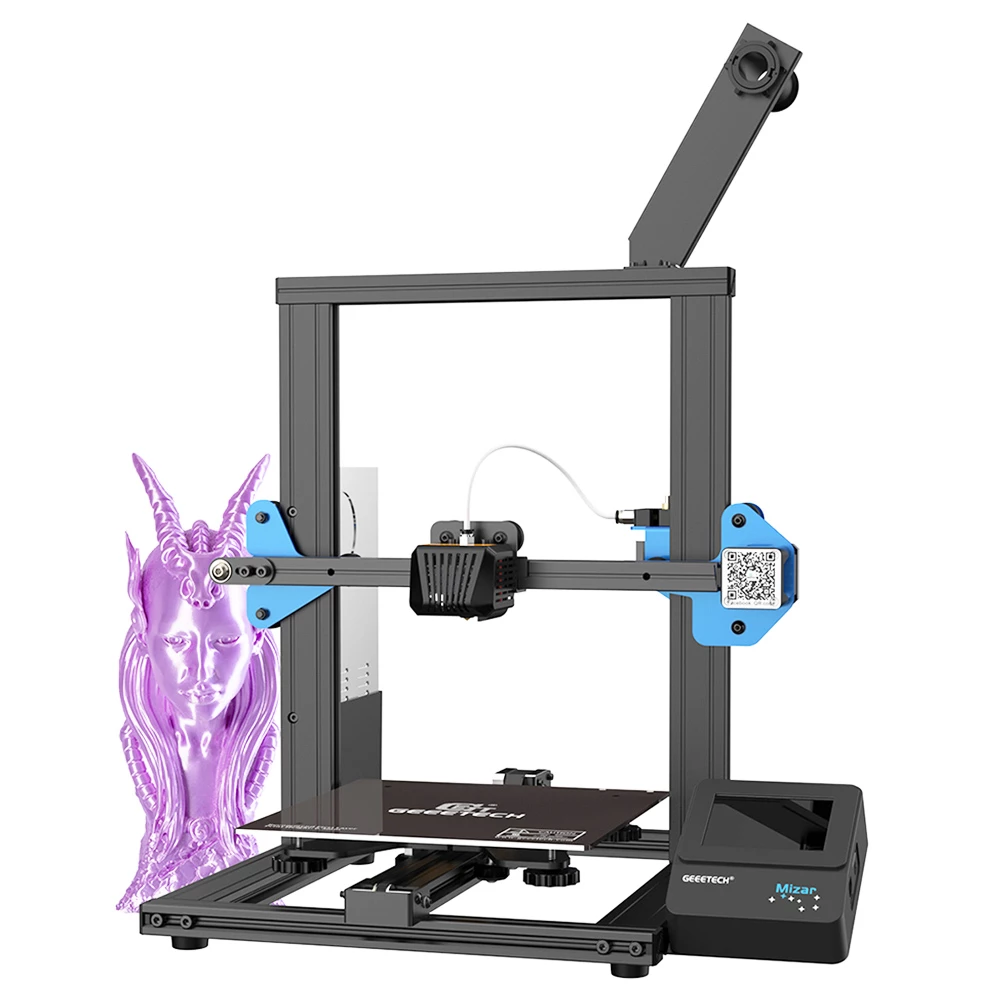

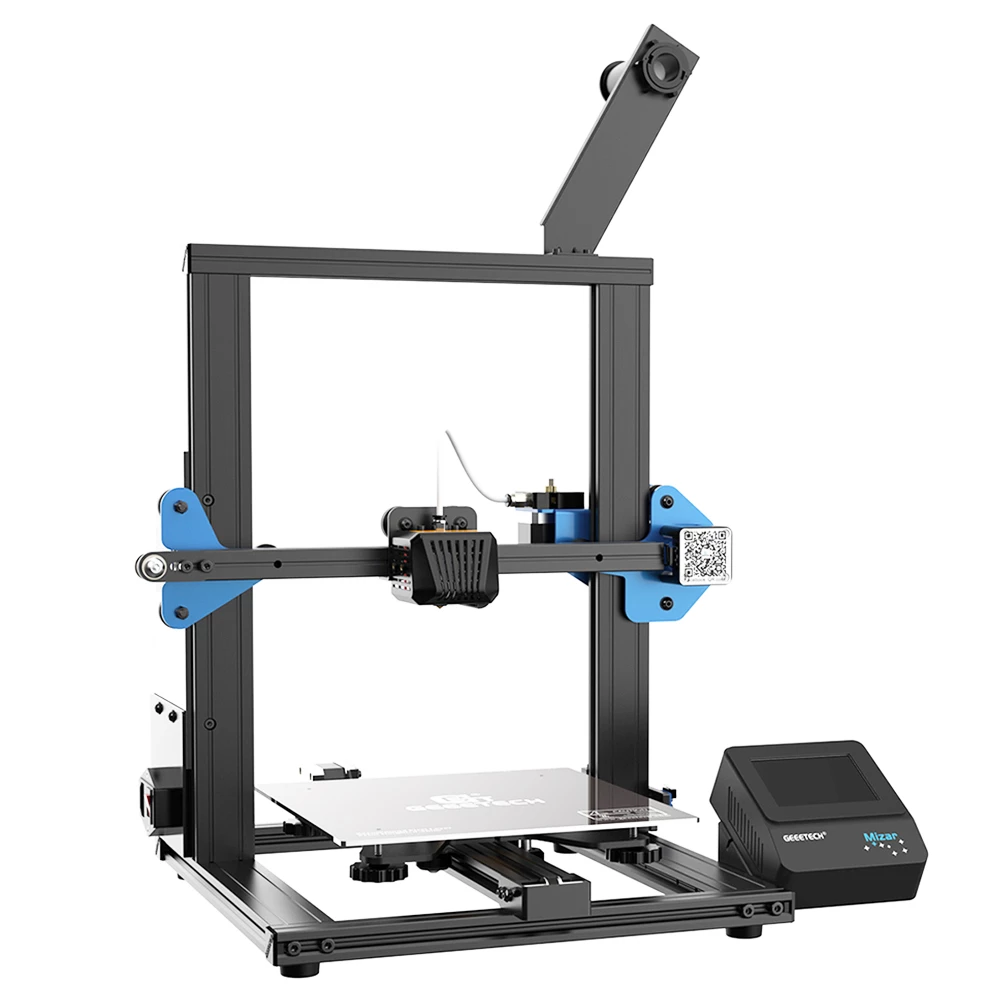

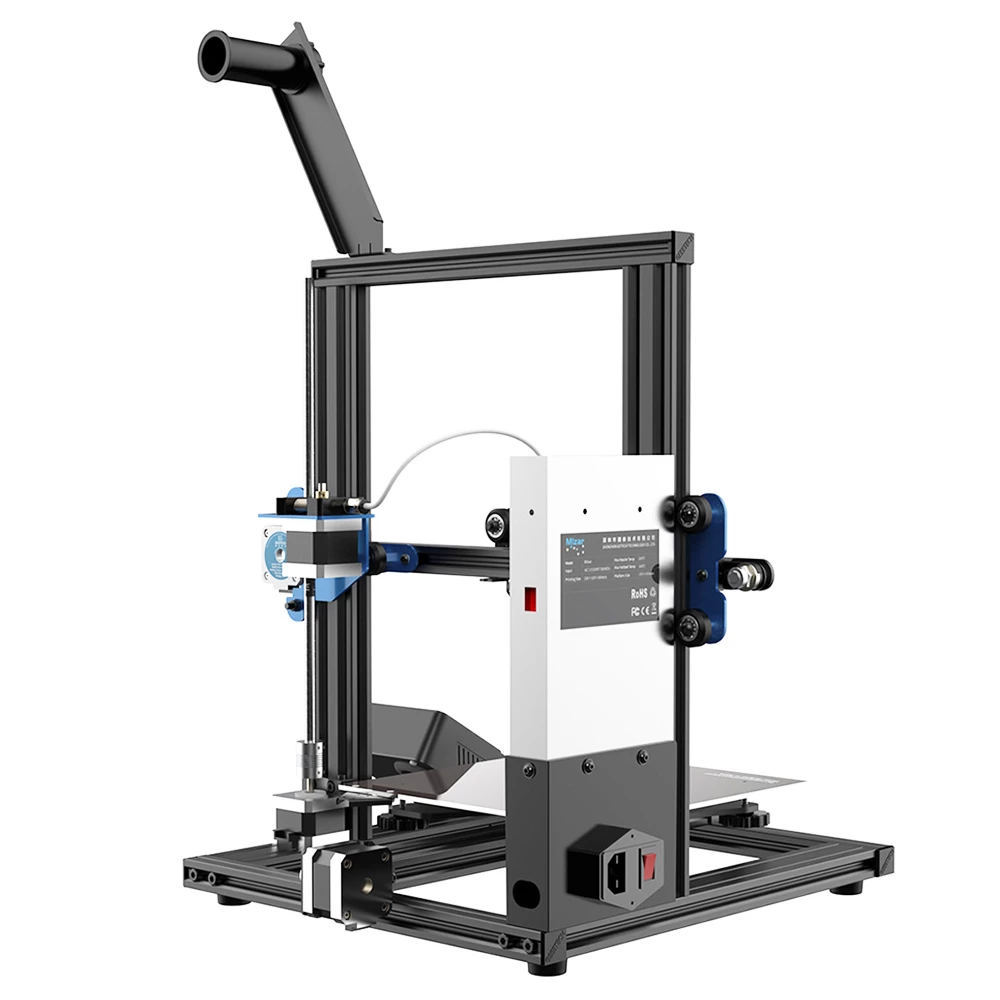

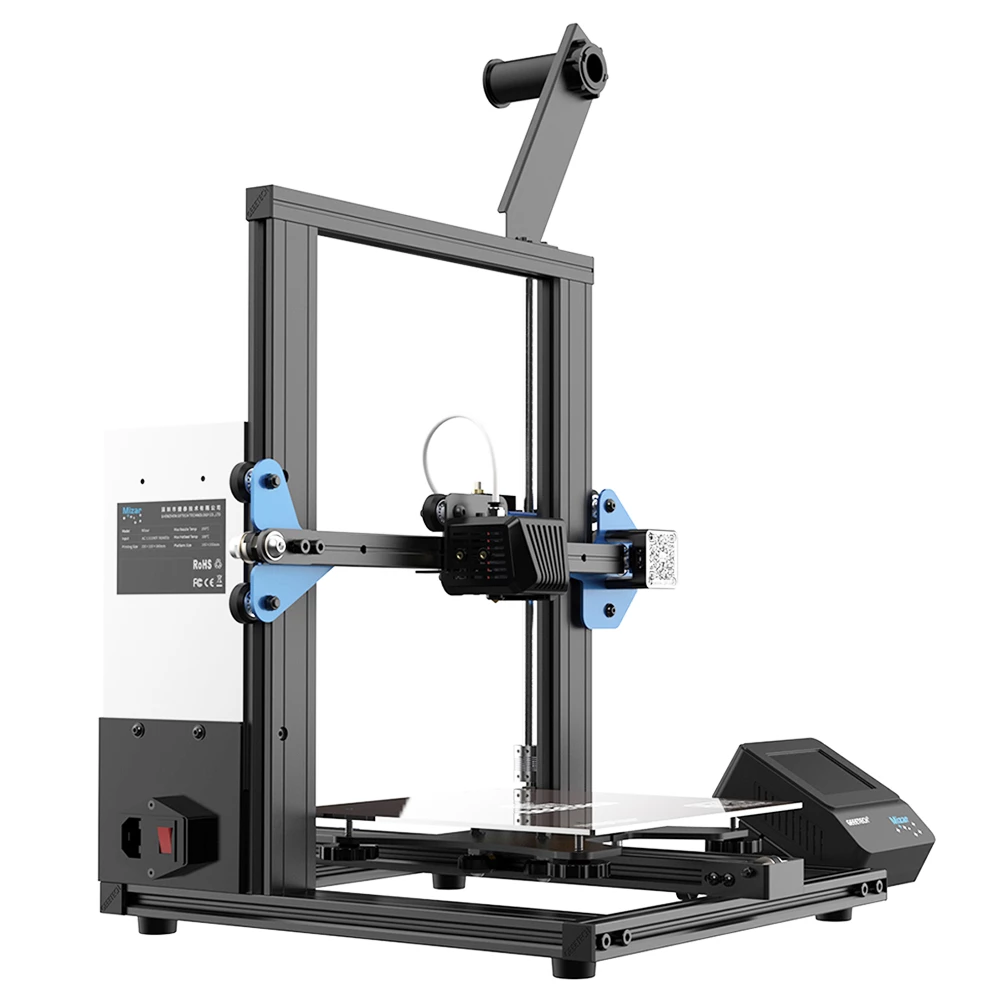

Geeetech Mizar DIY 3D Printer, Auto Leveling, Resume Print, 3.5-inch Color Touch Screen, TMC2208 Silent Drivers, 220*220*260mm

Highlights

Self-Developed TMC2208 Silent Motherboard

The motherboard in Mizar is equipped with a TMC2208 silent driver, which can greatly reduce the noise of the X-axis and Y-axis motors during the printing process. The noise of the whole machine is <50dB.

32-Bit MCU

The Mizar Motherboard is equipped with 32-Bit MCU, which has a higher frequency and better performance than the AtMega 2560

Printing-Resuming

Mizar comes with a filament detector and break-resuming capacity, if the electrical power is off, prints can be resumed from the last layer, saving your time and reducing the waste.

Higher Precision

High printing quality with +/- 0.1mm accuracy

New Hot End Design

Mizar uses two large-volume and low-noise cooling fans, which improves the heat dissipation performance and effectively reduces wind noise. The hot-end throat structure can greatly reduce the probability of material blocking

Upgraded screen

Adopting the 3.5-inch color touch screen, new UI design, more concise interaction, can greatly improve the user experience.



Specification

General	Brand: Geeetech Type: 3D Printer Model: Geeetech Mizar FDM  Color: Black
Specification	Molding Technology: FDM Printing Speed: 20-100mm/s  suggested: 50-60mm/s Printing Volume: 220mmx220mmx260mm Nozzle Diameter: 0.4mm Filament Diameter: 1.75mm Supported Filament: PLA /ABS / PETG/wood-polymer/PVA/HIPS/ Printing Method: TF card(off-line),USB cable(on-line) Printing Accuracy: 0.1mm Positional Accuracy: X/Y axis:0.011mm ,  Z axis: 0.0025mm Layer thickness: 0.01-0.3mm Screen: 3.5inch color touch screen Slicing Software: EasyPrint 3D, Repetier-Host, Simplify 3D, Cura, Slic3r File Format: .Gcode Power: AC 115/230V 50-60Hz 360W Nozzle Highest Temp. : Max 250+C Hotbed Highest Temp. : Max 00+C
Weight & Size	Product Weight: 6.3kg Package Weight: 8kg Product Size(L x W x H): 48.4×43.5×66.8 cm Package Size(L x W x H): 60.4×34.8×22.3 cm
Package Contents	1 x Geeetech Mizar DIY 3D Printers 1 x User Manual
