KAIWEETS ST100 Smart Pen Multimeter Digital Voltage Tester DC/AC Non-Contact Voltage Tester with Smart Auto Mode

Highlights

Multi-parameter Measurement

ST100 voltage test pen provides a full range of electrical measurements: AC&DC voltage/resistance/continuity/frequency/capacitance//live/diode/phase sequence.

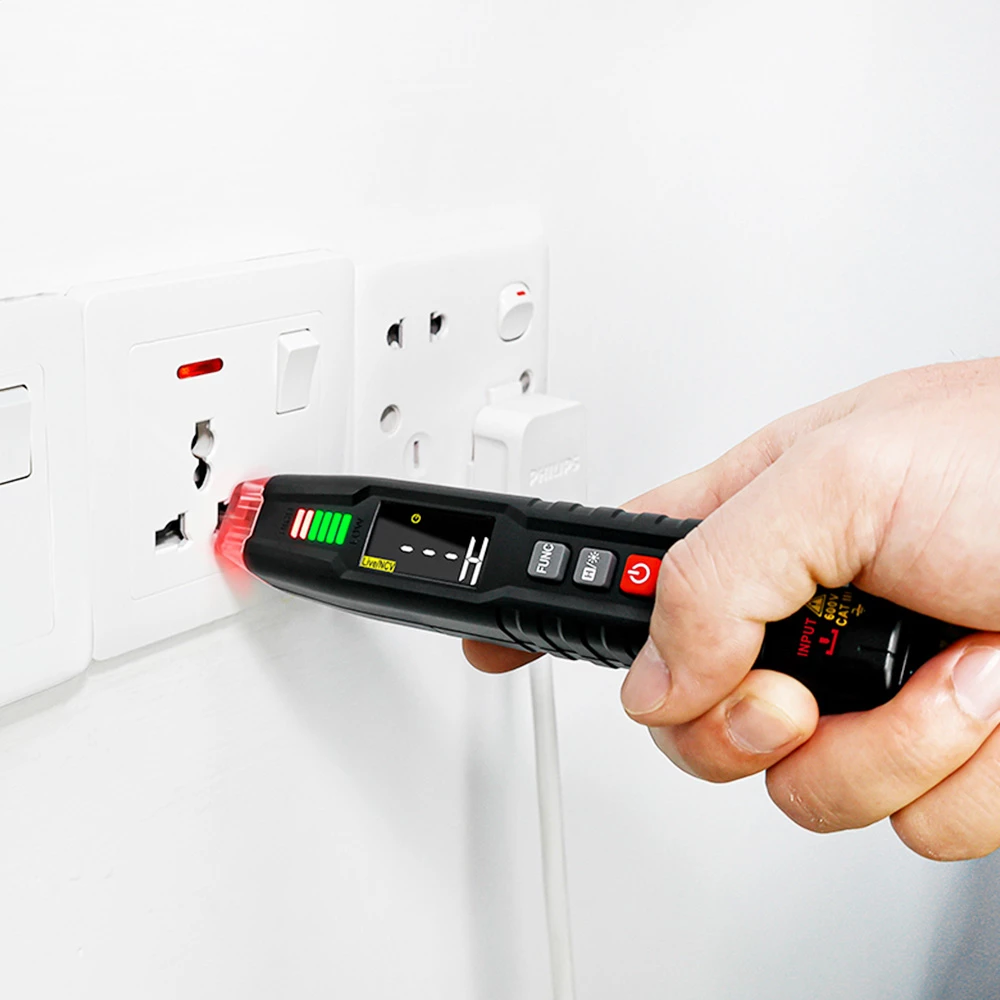

Non-Contact Voltage Tester

An NCV tester can detect voltage. Measuring voltage without touching wires largely avoids electric shock.

Buzzer and Indicator Bar

When voltage is detected, the buzzer and indicator bar is activated. The frequency of the warning tone and the color of the indicator light depends on the voltage level.

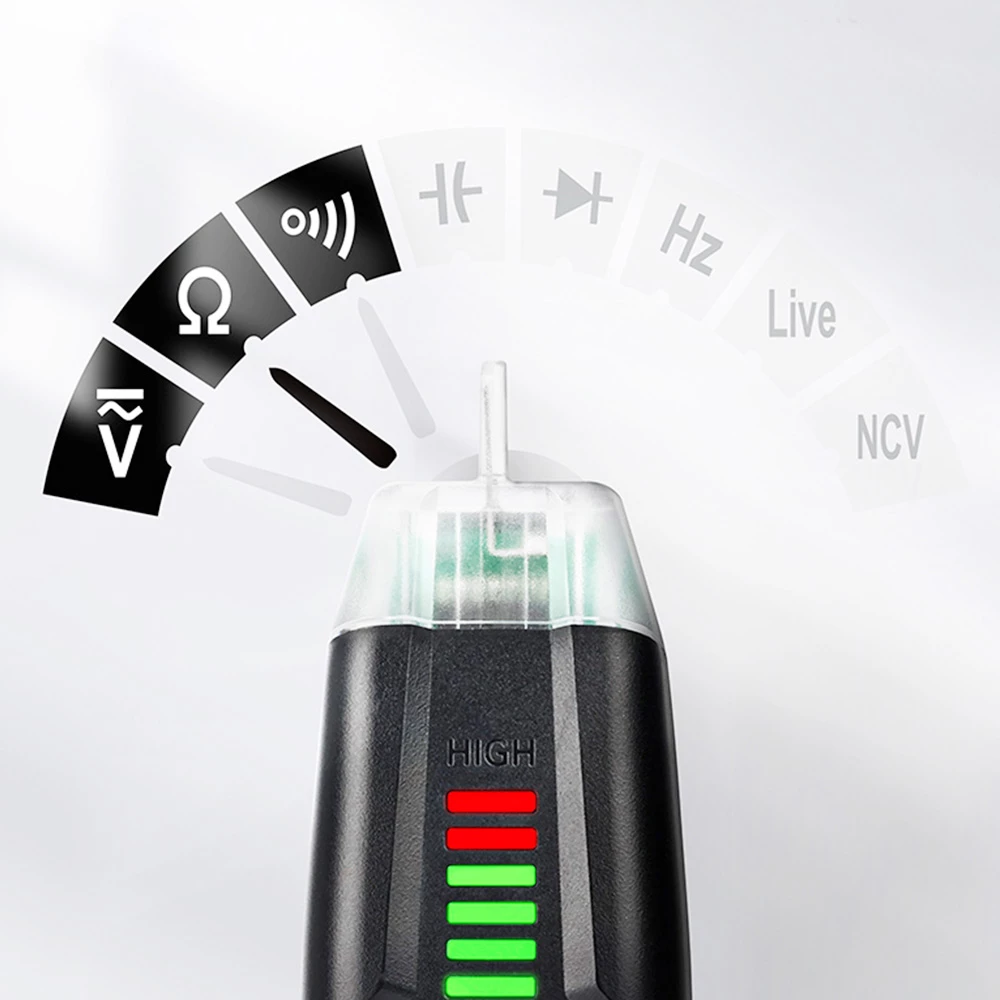

Smart Auto Mode

Running in Auto Mode, the electrical checker automatically identifies the voltage, resistance and continuity being measured and displays the reading on the display.

Specification

General	Brand: KAIWEETS Type: Digital Voltage Tester  Model: ST100
Specification	Batteries: 2 AAA batteries required (included) External Testing Certification: IEC61010-1 CAT.III 600V Display Type: LCD Specific Uses For Product Function &Range &Accuracy DC voltage test 0~600V ±(0.5%reading+3) AC voltage test 0~600V ±(0.8%reading+3) Resistance test 0~4MΩ ±(1.0%reading+5) 4MΩ~40MΩ ±(1.5%reading+10) Capacitance test 0~4mF ±(3.0%reading+5) Frequency test 0~4MHz ±(1.0%reading+3) Phase Sequence Test NCV Test Live Wire Test Diode Test Continue Test
Weight & Size	Product weight: 0.078KG Product size: 1.1 x 0.9 x 2.8 inches

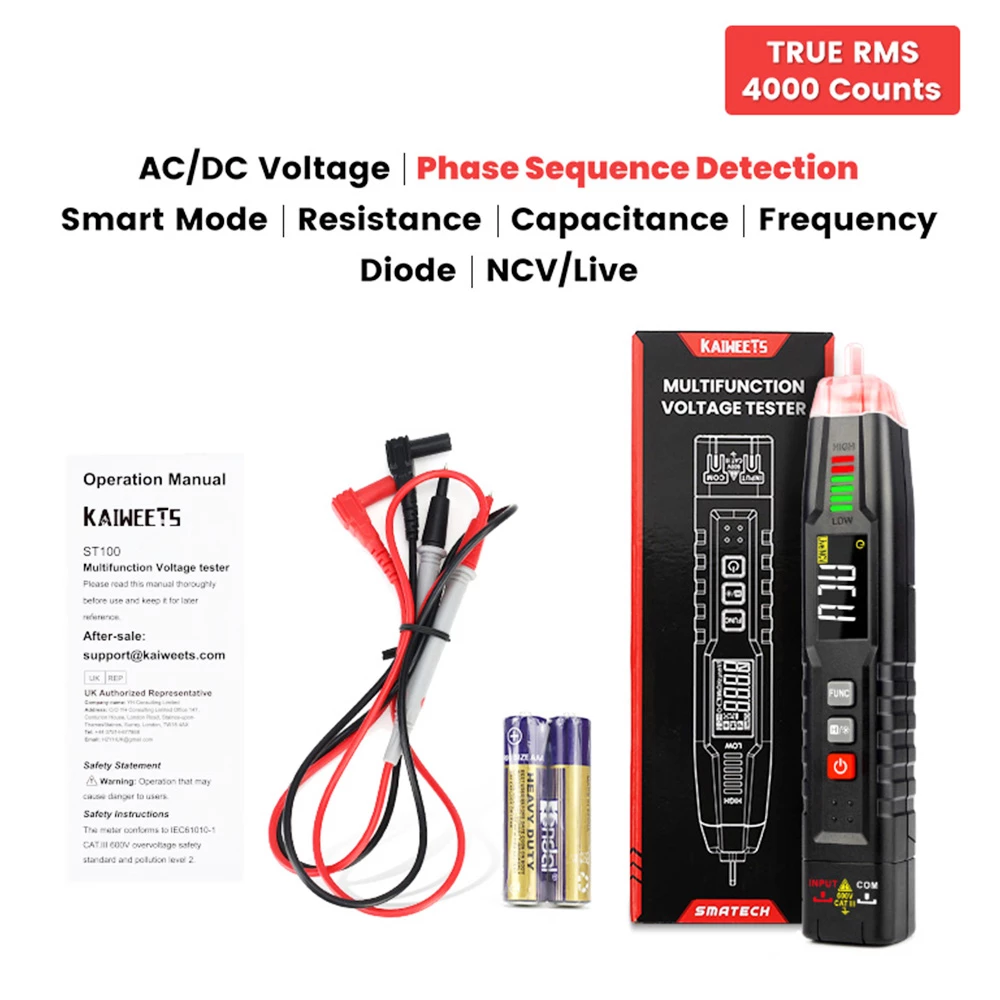

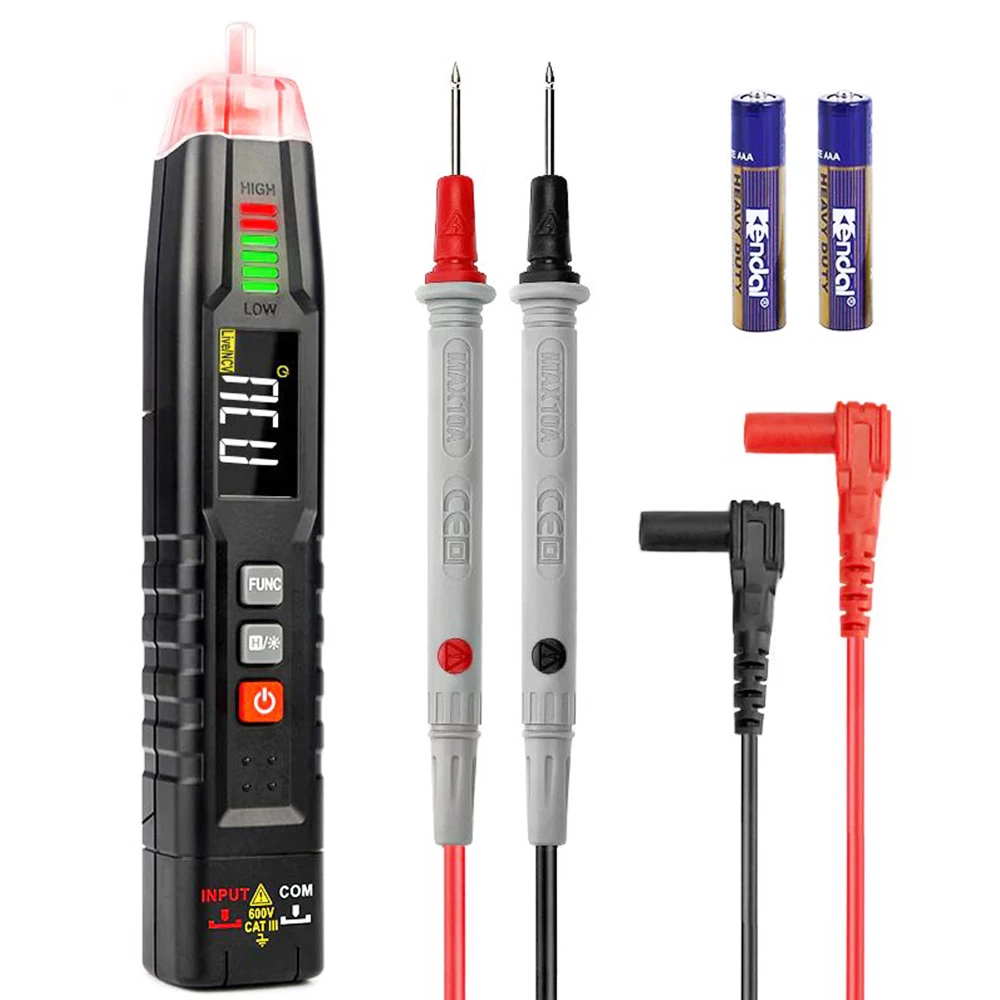

Package Contents	1 x ST100 Voltage Tester 2 x Testing Probes 2 x Probe Caps 2 x AAA Batteries 1 x User Manual
