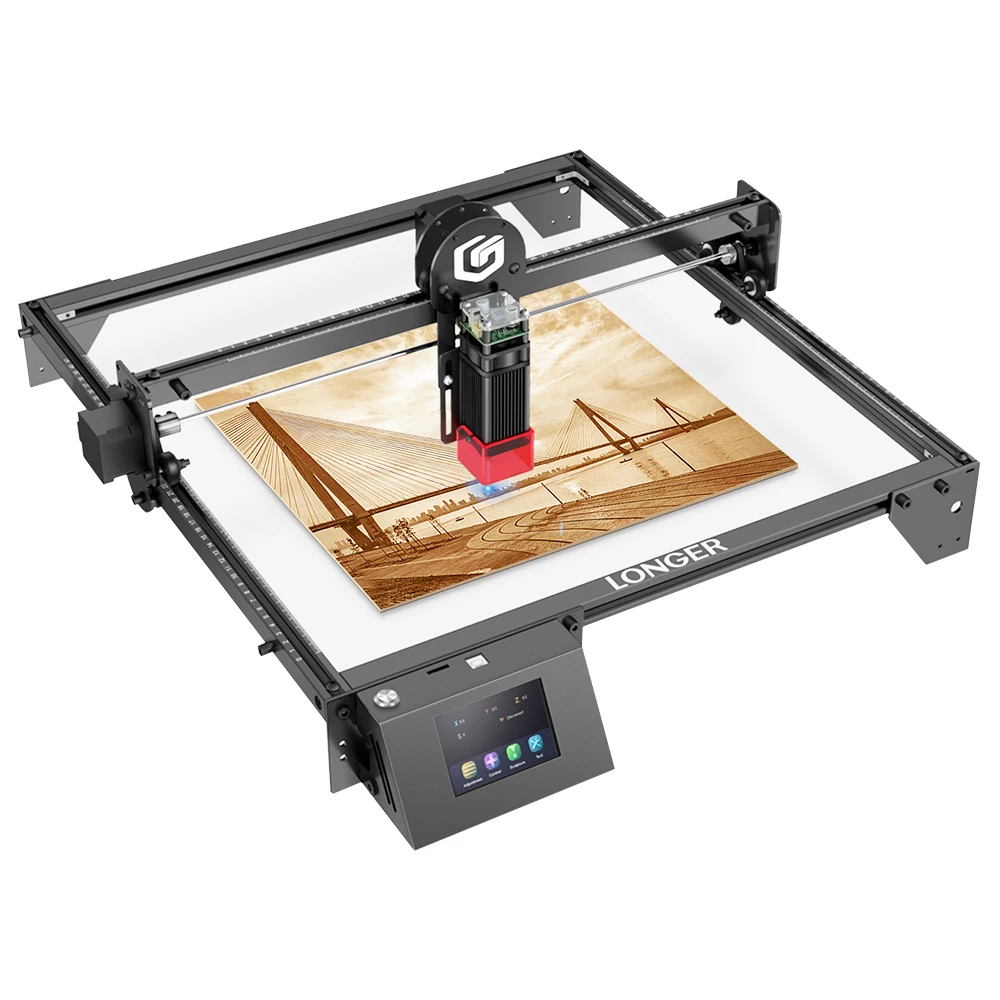

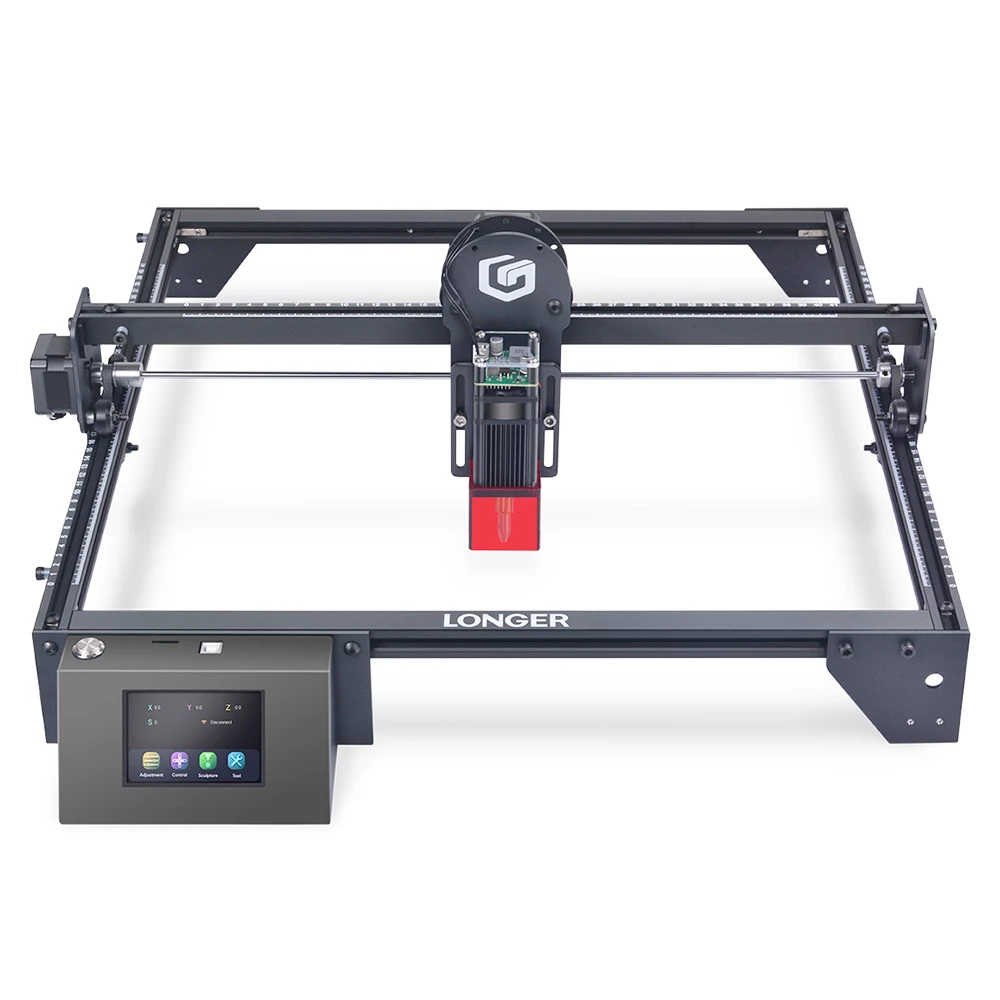

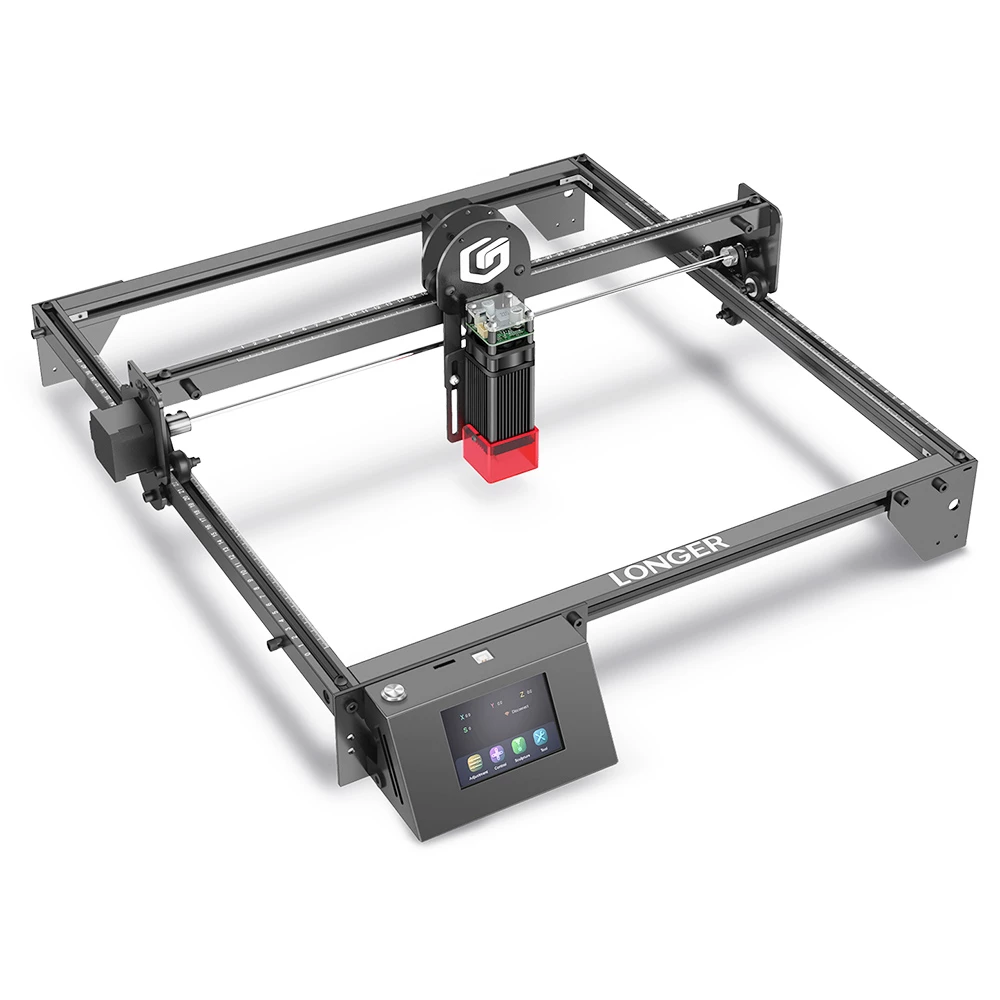

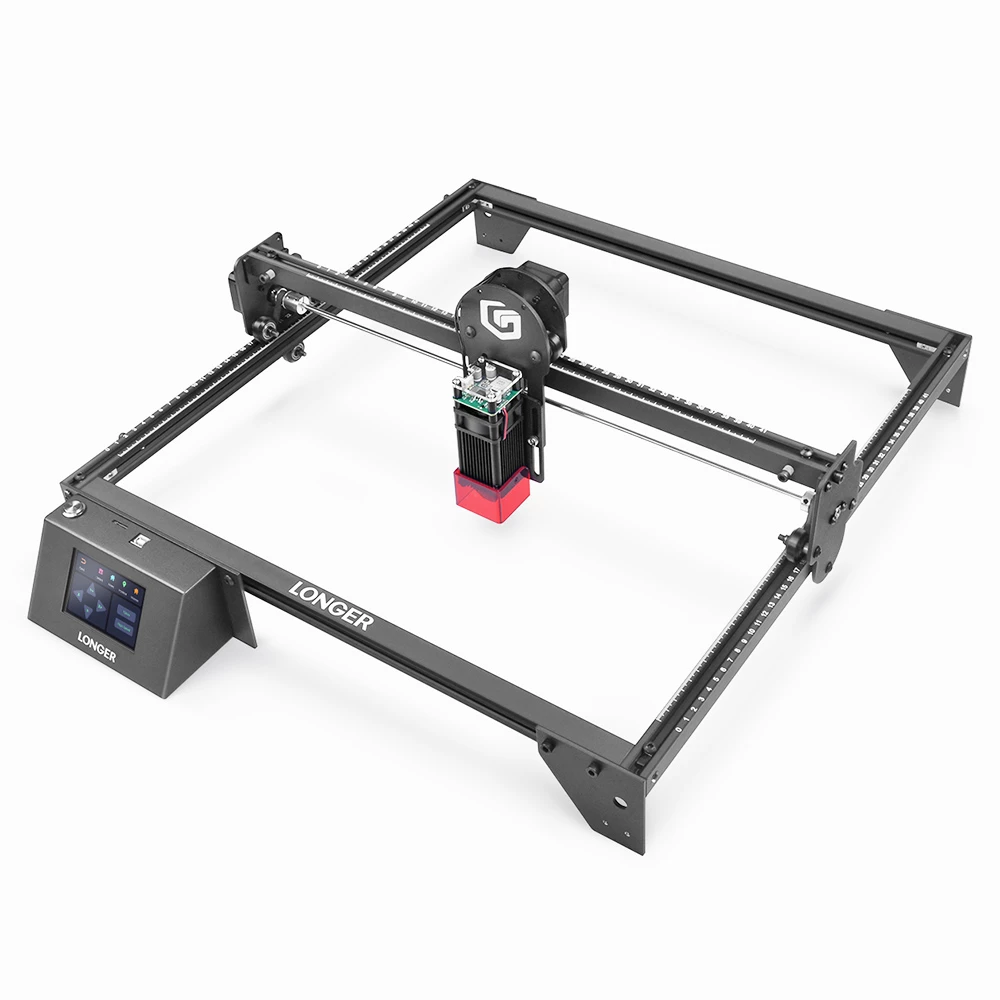

LONGER RAY5 10W Laser Engraver, 0.06×0.06mm Laser Spot, Touch Screen, Offline Carving, 32-Bit Chipset, WiFi Connection, Working Area 400x400mm

Highlights

More Powerful Functions & Wide Applicable Materials
Ray5 10w with 3.5-inch touch screen added new functionality like multiple ways for data transfer and multiple machines control. Compared to other laser engravers, it can engrave up to 1000+ materials.
Ultrafine Laser Point & 10W Powerful Laser Module
With dual beam technology, Ray5 10W has a stronger laser power, which enables better cutting and engraving capacity. It is able to cut 20mm thick wood board and 30mm acrylic. It features 400x400mm engraving size and 10000mm/min engraving speed.
Ray5 adopts the latest compressed laser technology, which generates an ultra-fine laser spot of 0.06×0.06mm, two times thinner than ordinary lasers.
Offline Engraving & Multiple Ways for Data Transfer
It supports offline engraving and cutting functions, so there’s no computer connection is needed while engraving and cutting, making the operation easier for you to meet various DIY requirements. Wi-Fi, USB cable, APP, and TF cards are supported to transfer the data.
3 Safety Protection
LONGER RAY5 10W laser engraver is designed with flame protection, move protection, and motionless protection functions. When Ray5 detects any accidental flame while working, flame protection will automatically stop the laser and generate a continuous buzz alarm. When the engraving machine is accidentally displaced or tilted, the machine will automatically shut down for personal safety. And the laser will be turned off automatically when the laser module is frozen for over 15 seconds.
32-Bit Chipset
Ray5 is built with an ESP32 chipset, which is running at 240MHz. Faster and more powerful than comparably equipped machines with the 8-bit chipsets.
Wide Software Compatibility
This machine is compatible with various mature carving software, such as LaserGRBL and LightBurn. It supports Windows 7+, macOS, and Linux, supports JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc. carving file formats.

Specification

General	Brand: LONGER  Type: Laser Engraver Model: RAY5 10W Color: Black
Specification	Model Number: Ray5 10W Laser Technology: Dioser Technology Working Area: 400x400mm (15.75×15.75inch) Laser Wavelength: 450nm Focal Length: Fixed Focus-50mm Laser Spot Size: 0.06×0.06mm Optical Output Power: 10W Z Axis-Height Range: Up to 47mm Fastest Working Speed: Speed 10000mm/min Engraver Output: DC 12V 5A Engraver Input: AC 110-240V Software: LaserGRBL and LightBum Connection: USB/TF Card/WiFi Carving File Formats: JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc. Laser Engraver Size: 586x583x176.5mm (23.07×22.95×6.95inch)
Weight & Size	Package Weight: 4.79kg Package Size(L x W x H): 62.5×30.5x14cm
Package Contents	1 x LONGER RAY5 10W Laser Engraver 1 x User Manual
