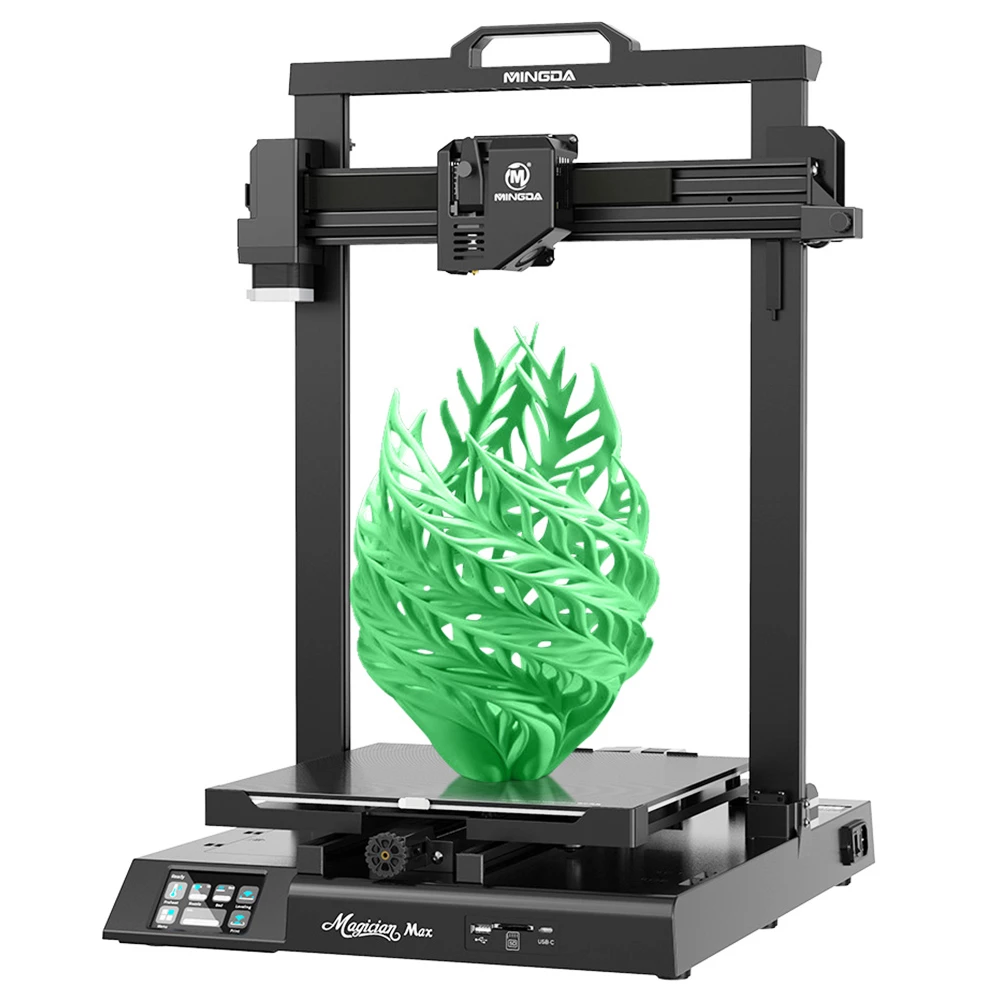

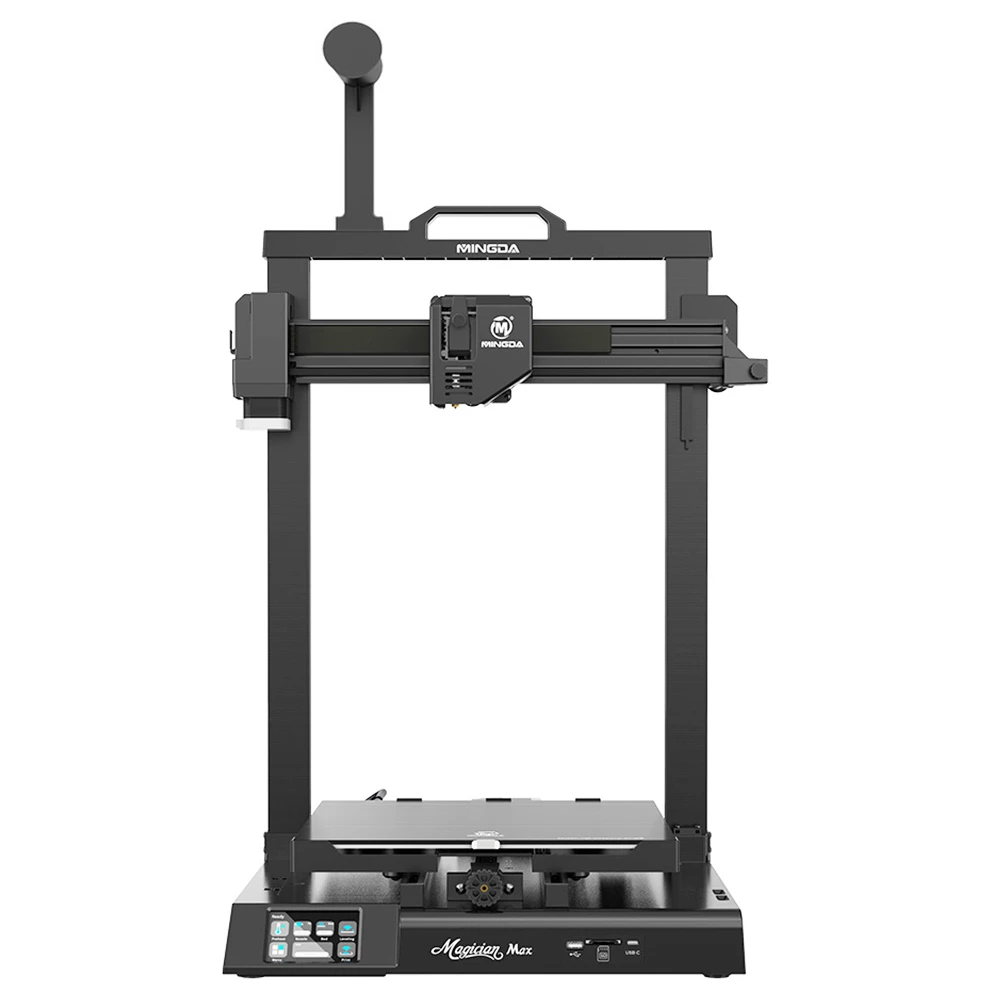

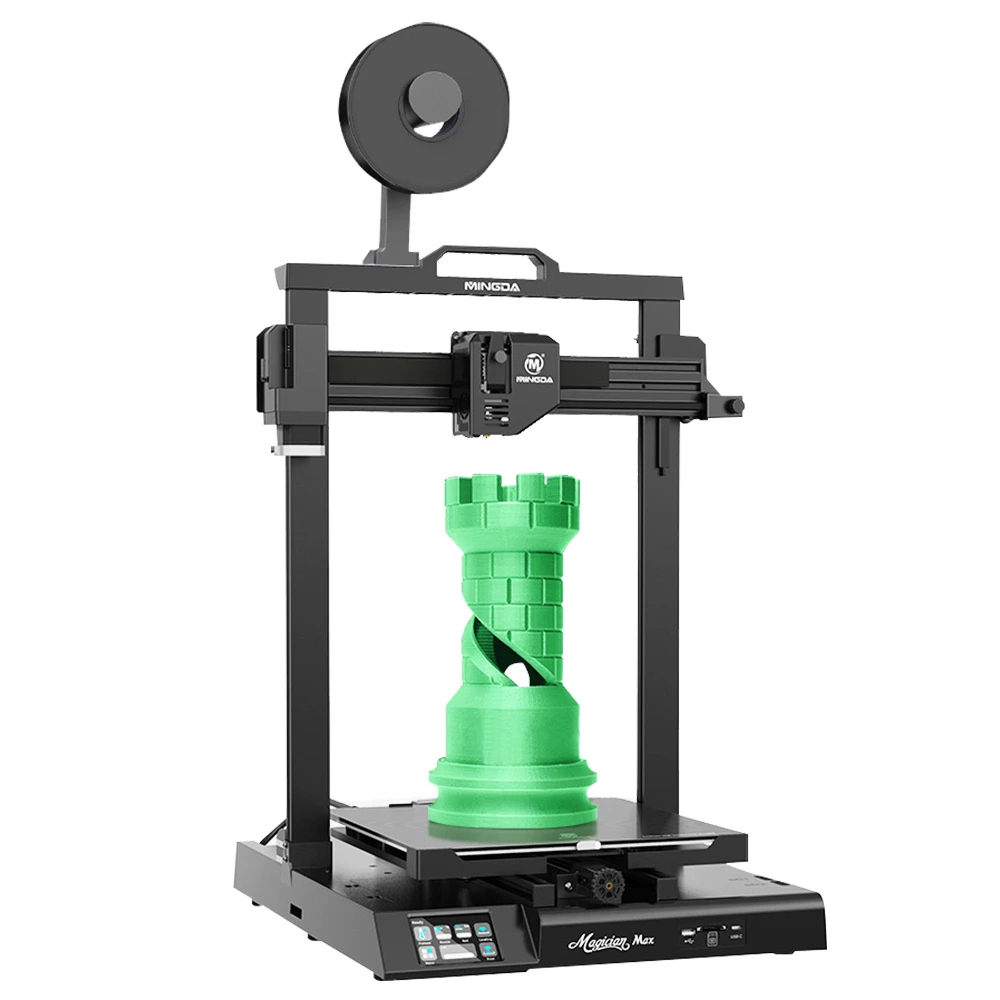

MINGDA Magician Max Modular FDM 3D Printer, Auto Leveling, Double Gears Direct Extrusion, Printing Size 320*320*400mm

Highlights


Large Printing Size
320*320*400mm, Creates more possibilities

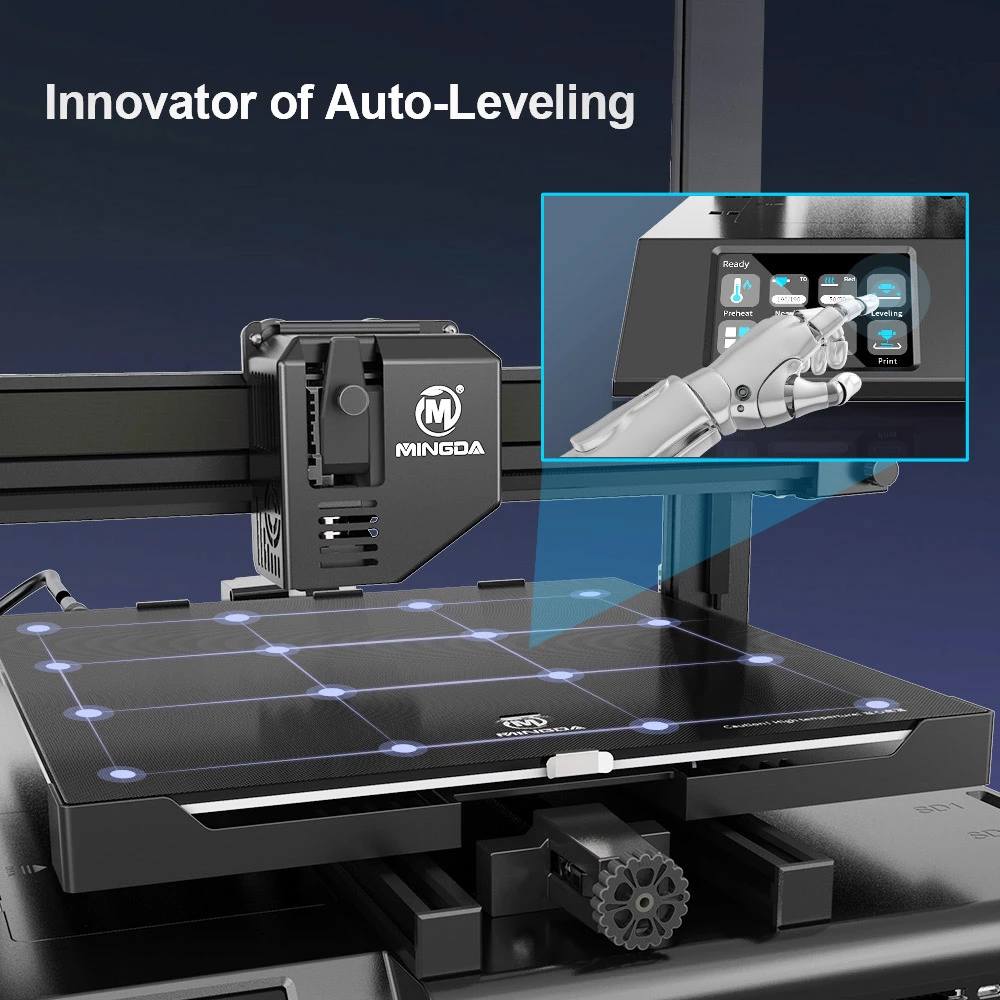

Auto-Leveling
Don’t need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed. High-sensitivity sensor,
16-point precise leveling.

Ultra-Silent Printing
The mechanical structure is ultraquiet, and the chip 2209 is ultra-quiet. Ultra-quiet TMCUse TMC Stepper motor drivers, super quiet and noise reduction, running more stable,<50dB silent printing

Ready to Print
One step assemble, ready to print

Glass Heat Bed
The 4th generation of glass heat bed cold glue installation, easy to take the model and scratch proof.

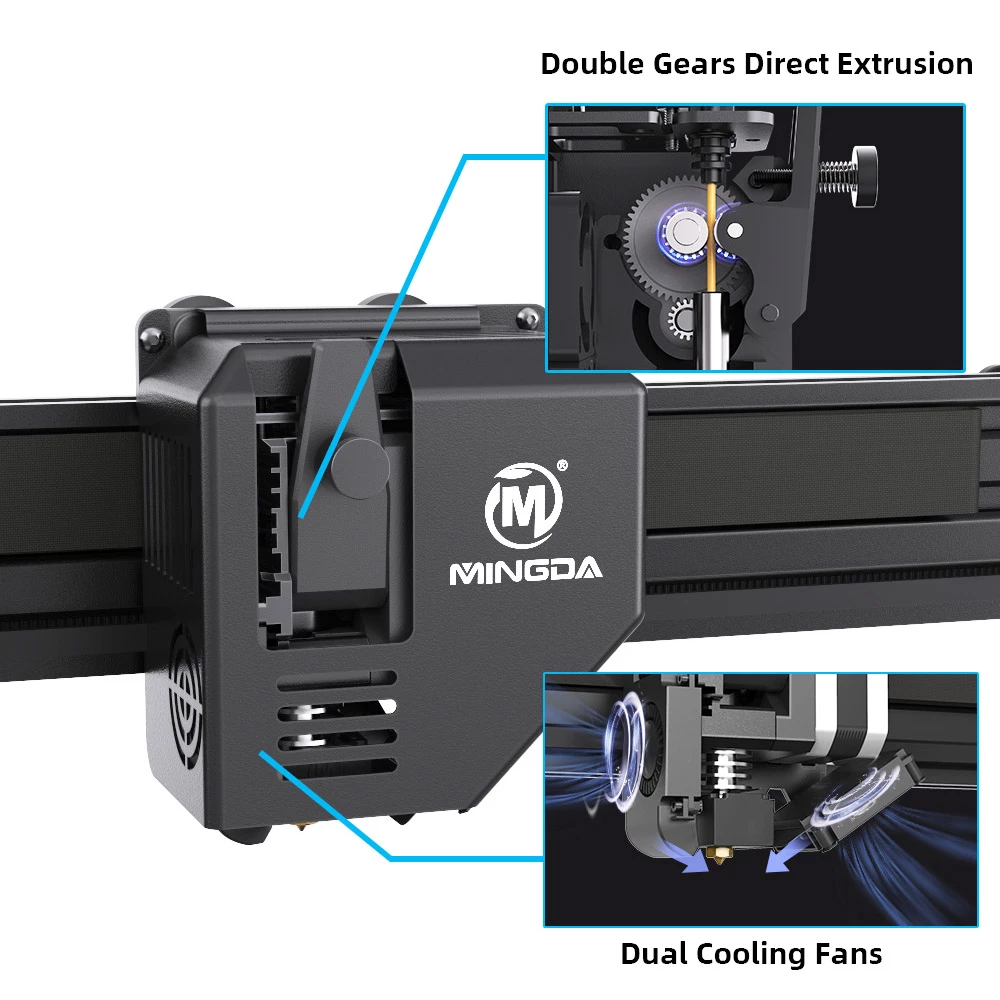

Dual Cooling Fans
The printing head adopts a double fan two-way heat dissipation system, which cools down models rapidly. The printing speed is faster which can reach 100mm/s.

Double Gears Direct Extrusion
Conveying material uniform without winding

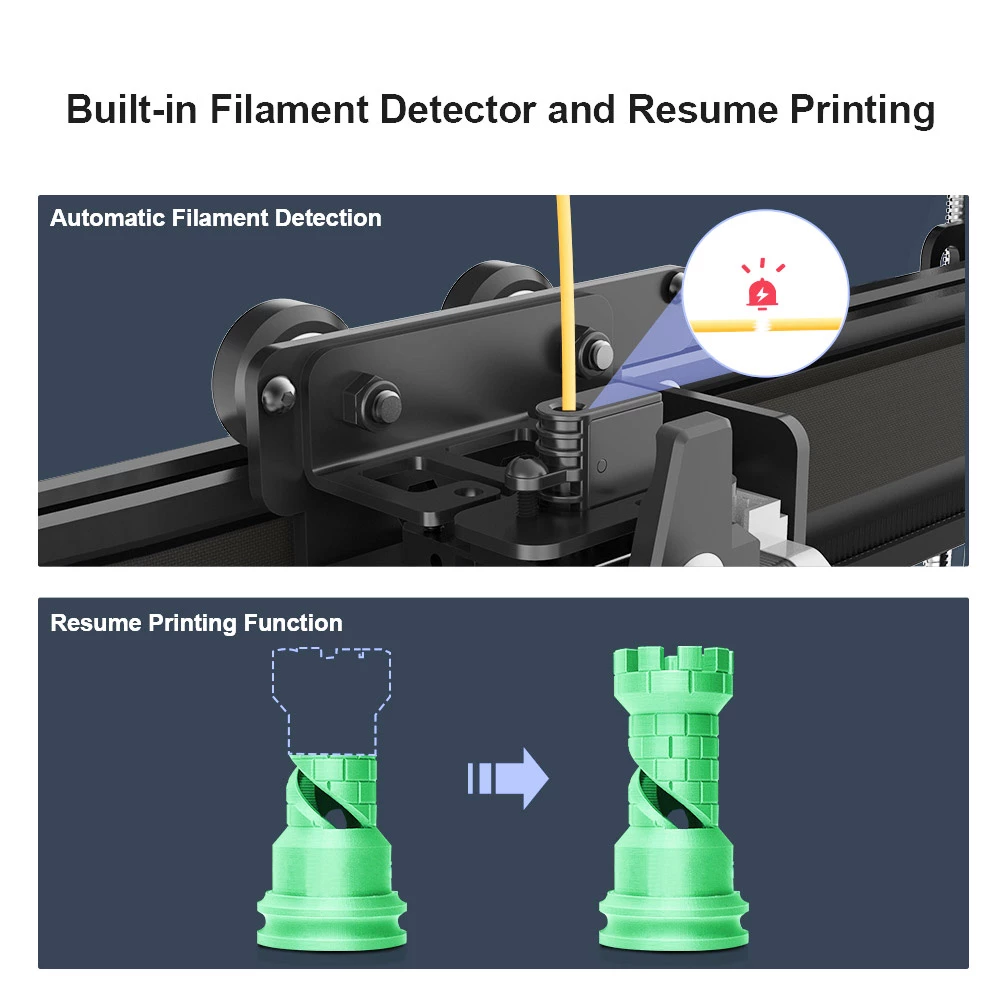

Automatic Filament
Broken material can be automatically detected

Stepping Drive – Ultra Quiet TMC
Use TMC Stepper Motor Drivers, Super Quiet and Noise Reduction, running more stable,≤50dB silent printing

The newly upgraded chip of Brand core
High-speed computing; high-performance, 32-bit frequency: 168M; Cortex-M4 CPU with FPU and DSP instruction, memory protection unit

Multi Connection
Support SD card, USB, and USB-C supports online printing

Dual Z-Axis with Synchronous Belt
Improve the accuracy, and keep the “layer shift” away.

Belt Tensioner on X/Y Axis
Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.

3.5″ Large Touch Screen
The screen adopts a new UI interface, manipulates photos, and switches to multiple languages. New interface; large screen; simple operation.

Build-in Tool Box
Convenient after using the tool



Specification

General	Brand: Mingda Type: 3D Printer Model: Magician Max  Color: Black
Specification	Print Technology: FDM ( Fused Deposition Modeling) Build Volume: 320(L)*320(W)*400(H)mm Print Resolution: ± 0.1mm Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm Nozzle Number: Single Nozzle Diameter: 0.4mm Print Speed: <200mm/s (recommended 60 – 80mm/s) Support Filaments: PLA, TPU, ABS Slicing Software: Cura Input Formats: .STL, .OBJ, .AMF Output Formats: GCODE Connection Mode: SD Card, U Disk, USB-C Input voltage: 100/240 V AC, 60/50Hz Output voltage: 24V/14.6A (350W) Ambient operating Temperature: 5°C – 40°C Operational Nozzle Temperature: max ≤260°C Operational Hot Bed Temperature: max ≤110°C
Weight & Size	Product Weight: 10kg Package Weight: 14kg Product Size(L x W x H): 555x430x660mm Package Size(L x W x H): 680x560x280mm
Package Contents	1 x 3D Printer 1 x Filament 1 x Filament Holder 1 x Tool Box Cover 2 x M5*25  4 x M4*20  1 x SD Card 1 x Teflon Tube 1 x Nozzle 1 x Power Cable 1 x Wrench 1 x Allen Wrench 1 x User Manual
