MINGDA Magician X Modular 3D Printer, Direct Drive Extruder, Auto Leveling, 32Bit Mainboard, Ultra-Silent, 230*230*260mm

Highlights

The Newly Upgraded Chip of Brand Core

high-speed computing; high-performance,32-bit frequency: 168M; Cortex-M4 CPU with FPU and DSP instruction, memory protection unit

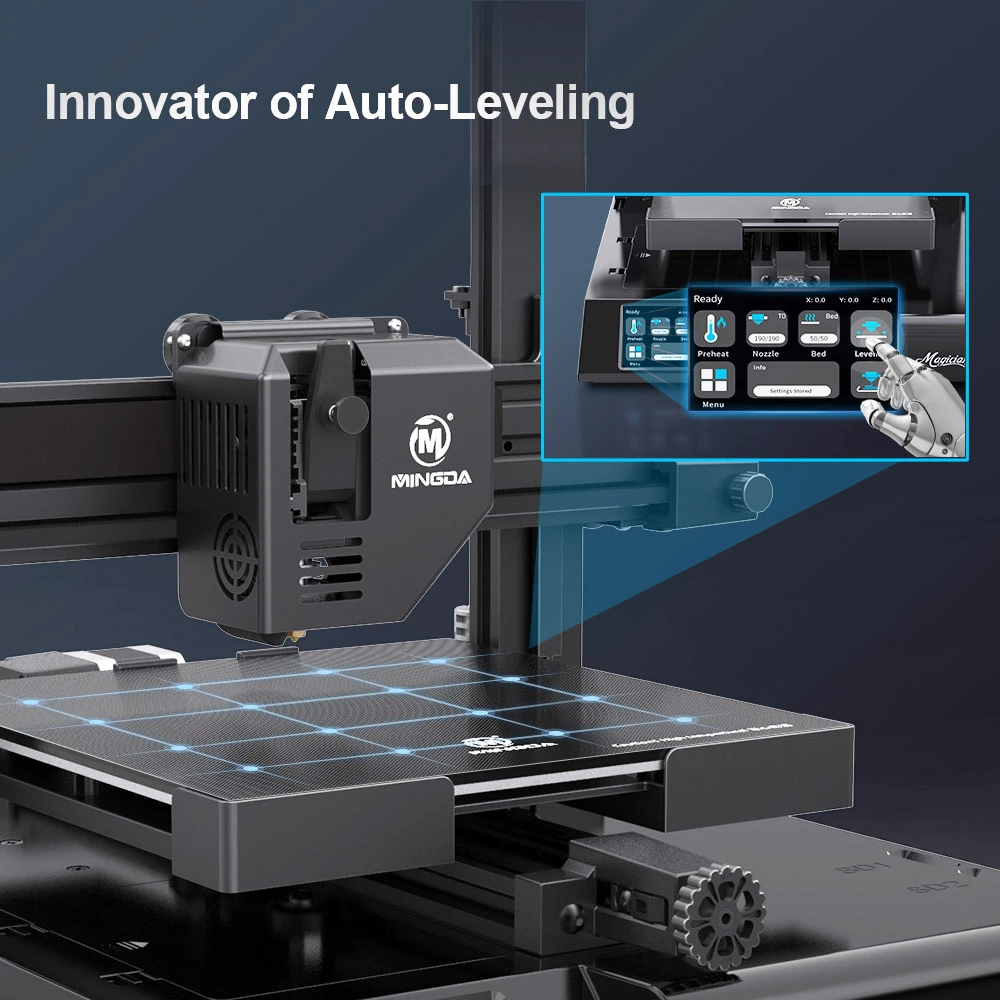

Auto-Leveling

Don’t need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed. High-sensitivity sensor, 16-point precise leveling.

Ultra-Silent Printing

Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,running more stable,≤50dB silent printing.

Glass Heat Bed

The 4th generation of glass heat bed cold glue installation, easy to take the model and scratch proof.

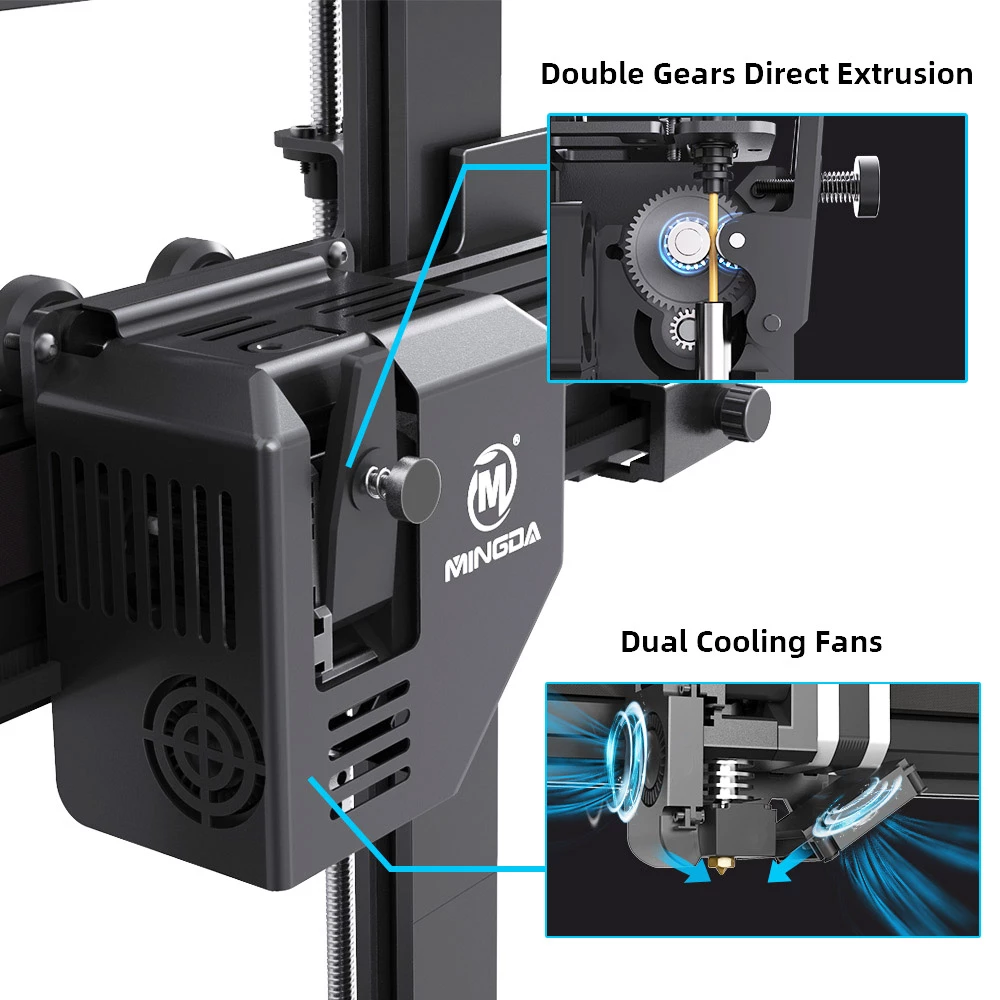

Dual Cooling Fans

The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.

Double Gears Direct Extrusion

Conveying material uniform without winding

Automatic Filament

DetectionBroken material can be automatically detected

Multi Connection

Support SD card, USB, and USB-C supports online printing

Dual Z-Axis with Synchronous Belt

Improve the accuracy, keep the “layer shift” away.

Belt Tensioner on X/Y Axis

Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.

3.5″ Large Touch Screen

The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.

Specification

General	Brand: Mingda Type: 3D Printer Model: MINGDA Magician X Color: Black
Specification	Print Parameters: FDM ( Fused Deposition Modeling)  Build Volume: 230(L)x230(W)x260(H)mm  Print Resolution: 0.1mm  Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm  Extruder Number: Single  Nozzle Diameter: 0.4mm  Print Speed: <200mm/s (recommended 60 – 80mm/s)  Support Filaments: PLA, TPU, ABS  Software Parameters: Cura  Input Formats: .STL, .OBJ, .AMF  Output Formats: GCODE  Connection Mode: SD Card, U Disk, USB-C  Input Voltage: 100/240 V AC, 60/50Hz  Output Voltage: 24V/14.6A (350W)  Ambient Operating Temperature: 5+C – 40+C  Operational Nozzle Temperature: max 260+C  Operational Hot Bed Temperature: max 110+C
Weight & Size	Product Weight: 9.4kg Package Weight: 10kg Product Size(L x W x H): 555x430x660mm Package Size(L x W x H): 500x43x20.3mm
Package Contents	1 x Filament 1 x Filament Holder 1 x Tool Box Cover 2 x M5*25  4 x M4*20  1 x SD Card 1 x Teflon Tube 1 x Nozzle 1 x Power Cable 1 x Wrench 1 x Allen Wrench 1 x User Manual
