Revopoint MINI 3D Scanner Standard Edition, 0.02mm Precision, 0.05mm Point Distance, 10fps Scan Speed, Mini Turntable

Highlights

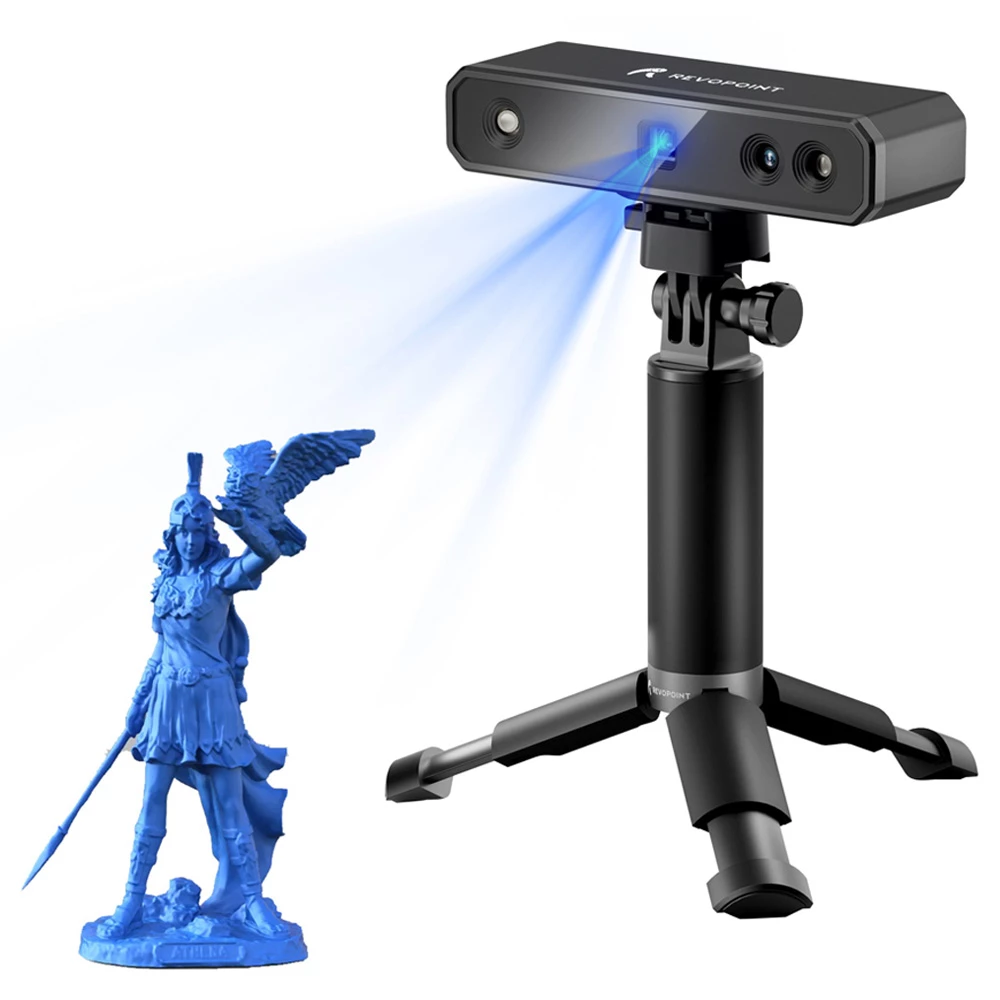

Industrial-grade Blue Light Technology
The MINI projects ultra-high-resolution structured light and has a strong ability to resist ambient light. The class 1 blue light used in the MINI scanner is harmless to the human body and makes it safe and user-friendly for all possible applications.

Multi-scenario Scanning
MINI supports two ways of alignment: the marker and the feature. It is an ideal device that can scan objects with various shapes for all kinds of 3D modeling needs.

10fps Scan Speed
The scanning speed can be up to 10 frames per second. With the help of upgraded intelligent algorithms, it can significantly reduce stitching errors in successive scanning.

0.05mm Point Distance
The output model has a high density of point clouds with a 0.05mm point distance.
The MINI scanner can save 80% of the time and cost spent on reverse engineering design, quality inspection, and digital processing of fossils and cultural relics.

0.02mm Precision
0.02mm precision allows even the tiniest parts to be accurately scanned and presented. The MINI can also be used for garage kit reproduction, miniature 3D model making, and other fields and instances in which obtaining detailed high-precision models is necessary.

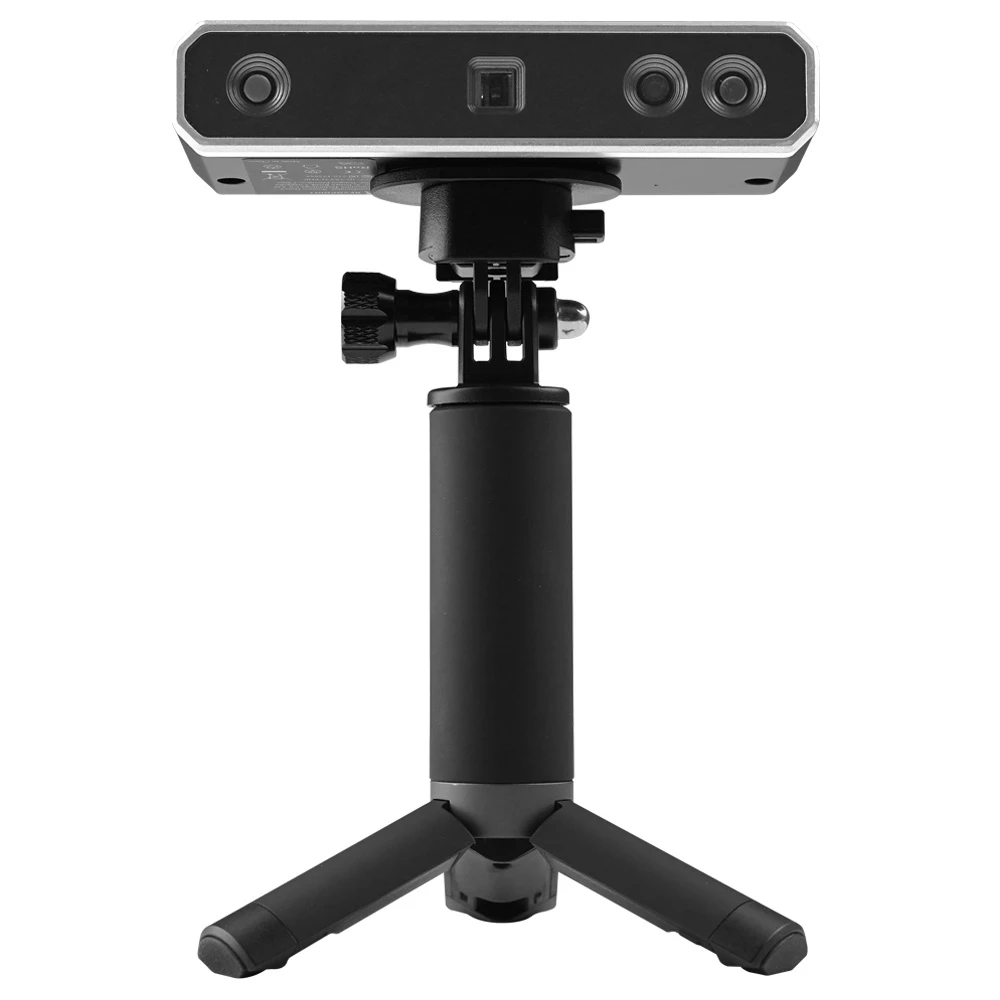

Detachable Tripod
It features free expansion and height adjustment for expanded device compatibility and multiple scenario usage.

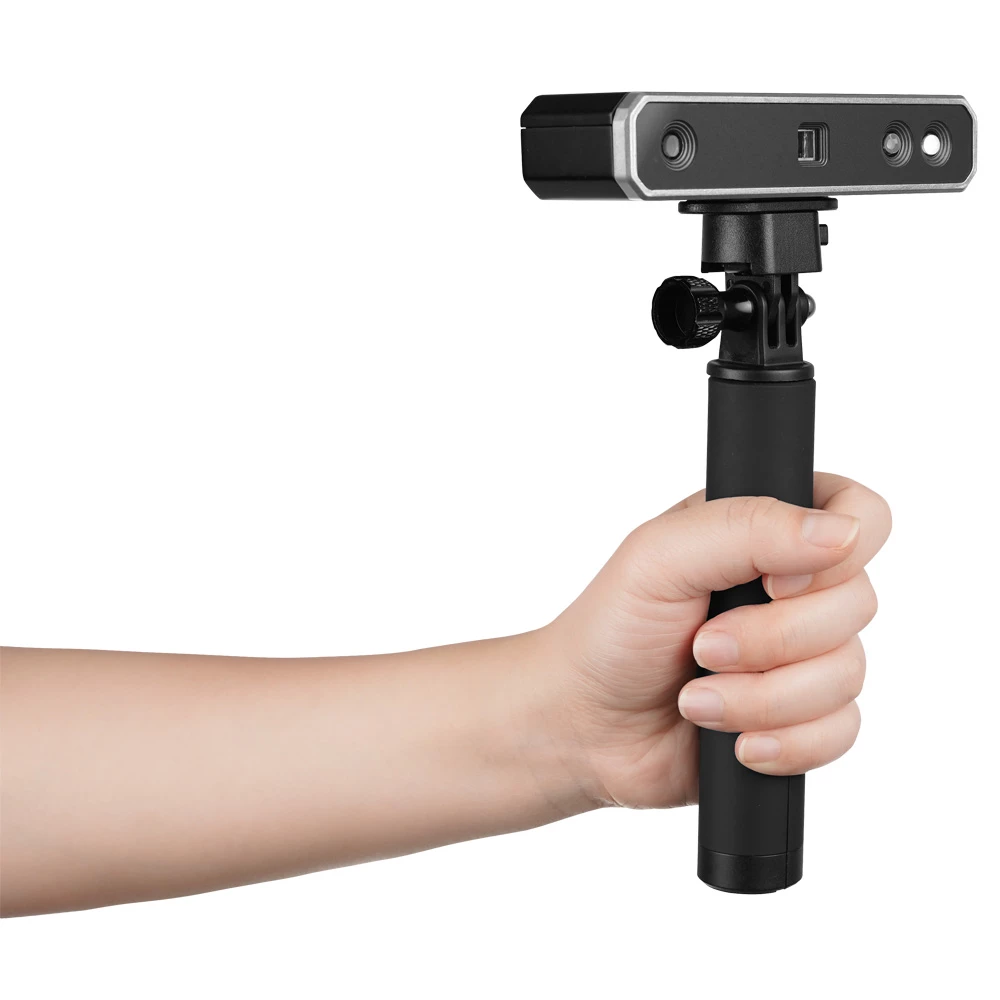

Compact and Portable
Weighs only 160g, MINI 3D scanner is lightweight and requires only one cable for charging and data transfer. You can connect the MINI to a computer, smartphone, or power bank and carry out your scanning work anywhere and anytime.

Scanning Software Revo Scan
With the Wi-Fi feature and the USB port, you can connect your MINI to a smartphone, tablet, or laptop.

Revopoint software/App comes with a simple and clear UI design, supports three common output formats (PLY, OBJ, and STL), and is compatible with major professional application software.

Editing Software Revo Studio
Possesses ‘Clip’, ‘Mesh’, ‘Simplify’, ‘Fill Hole’, and ‘Alignment’ features. You can edit the point cloud files and mesh models. Also, you can further enhance your creativity by fusing and aligning multiple models.

Calibration Software Revo Calibration
With Revo Calibration, you can re-calibrate the scanner and reset the camera’s internal parameters.

Specification

General	Brand: Revopoint Type: 3D Scanner Model: MINI Color: Black
Specification	Technology: Dual camera blue light Single-frame Precision: 0.02mm Single-frame Accuracy: 0.05mm Single Capture Range:  64mm×118mm Working Distance:100mm – 200mm Minimum Scan Volume: 10x10x10(mm) Scan Speed: Up to 10 fps Light Source: Class 1 blue light Alignment: Feature, Marker Output Format: PLY, OBJ, STL Point Distance: 0.05mm Special Object Scanning: For the transparent & highly reflective objects, please use scanning spray Scanning Environment: Indoor Printable Data Output: Able to export 3D models directly to 3D printing Required System Configurations: Windows 81011(64-bit),  Android, iOS, MAC Wi-Fi: 5G Connector Type: Micro USB Press Button: Yes
Weight & Size	Product Weight: 0.16kg Package Weight: 0.5kg Product Size(L x W x H): 120×38.5x25mm Package Size(L x W x H): 200x60x50mm

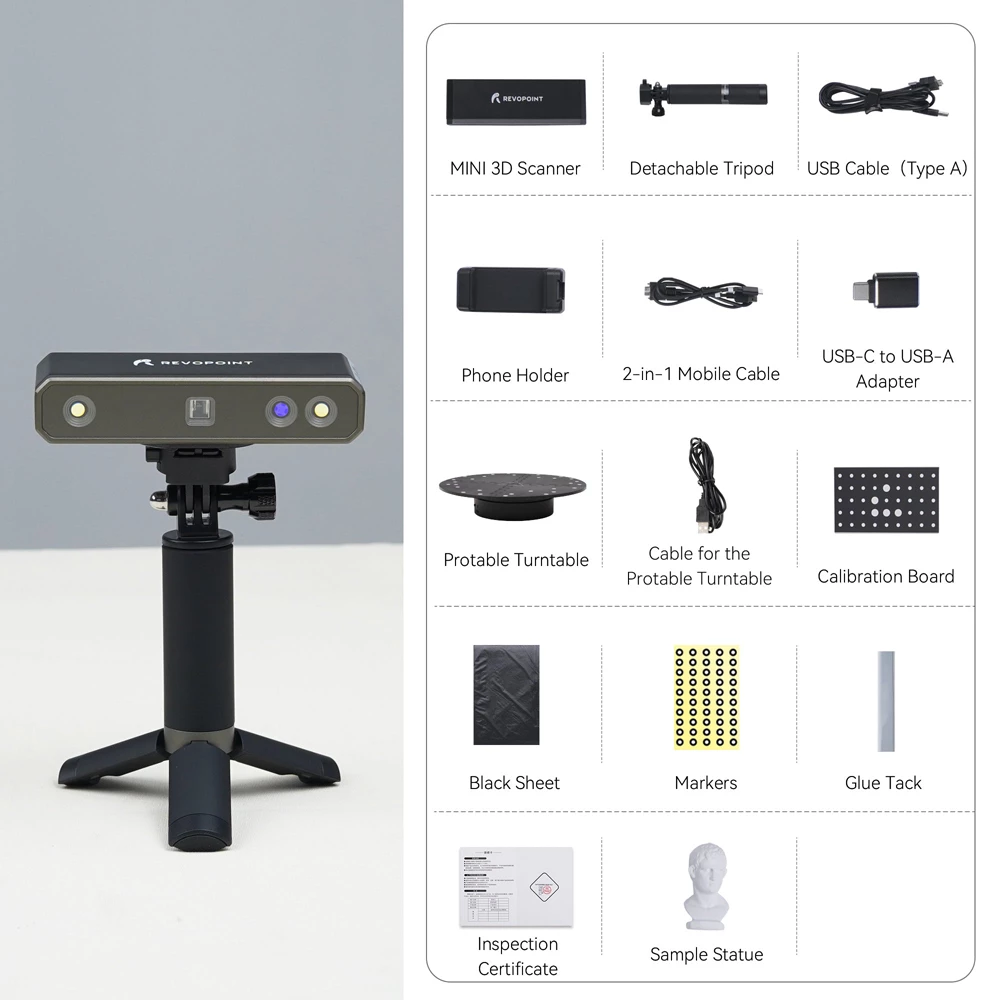

Package Contents	1 x MINI 3D Scanner 1 x Calibration Board 1 x Phone Holder 1 x Extended Plate 1 x 2-in-1Cable 1 x Tripod 1 x Mini Turntable 1 x Sample Statue 1 x USB Cable (Type A)
