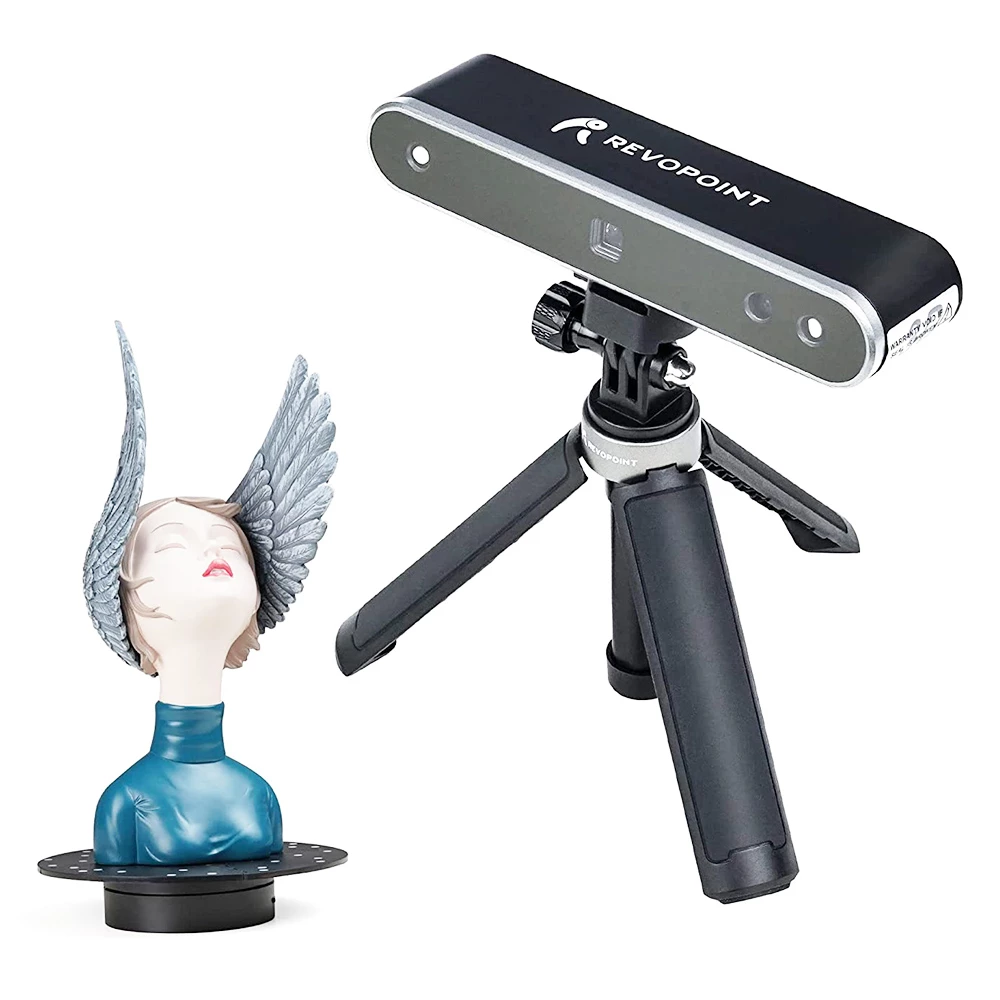

Revopoint POP 2 3D Scanner Premium Edition, Handheld and Turnable 2 in 1, 0.1mm Accuracy, 0.15mm Point Distance, 10Hz FPS, 6DoF Gyro, Color Effect, 5000 mA Power Bank, Compatible with iOS Android Windows

Highlights

2-in-1 Versatility

Say goodbye to separate handheld and turntable scanning devices. POP2 is designed to work as a handheld and turntable scanner, with amazing accuracy and ease of use in any of these functions. In a nutshell, this is the only 3D scanner you’ll ever need!

Binocular Micro-Structured Light

The core hardware of POP2 adopts the principle of binocular and Micro-structured light. With the help of the proprietary micro projecting chip, POP2 ensures that the fast acquired 3D point cloud data has high accuracy, and the highest single-frame accuracy can reach 0.05mm.

High Precision

POP 2 is equipped with an upgraded projector and IR cameras with higher resolution, and an improved high-precision calibration method ensures that POP 2 meets professional-grade precision, with an accuracy of up to 0.05mm and a 3D point cloud data of 0.15mm. This allows POP 2 to capture 3D models with more details and ensure better dimensional accuracy.

Perfect Scanning Fluency

The hardware upgrade of POP 2 enables the scanning frame rate to reach 10 frames. At the same time, it is equipped with an embedded 6 Dof Gyroscope to help faster and more accurate spatial position, reduce stitching errors, improve the smoothness of scanning, and make the scanning process simpler and faster. In a nutshell, it enhances its operational flow and shape, marker point, and color feature point cloud stitching.

Fantastic Color Effect

Through the high-resolution global exposure sensor, synchronization with the depth camera by hardware triggering, POP 2 can directly generate vivid 3D models for 3D animation, color 3D printing, etc. That can be used directly in AR and VR!

Specification

General	Brand: Revopoint Type: 3D Scanner Model: POP 2 Color: Black
Specification	Technology: Micro-structured light + Binocular proprietary technologyPoint Distance: Up to 0.15mm Single Capture Accuracy: Up to 0.05mm Single Capture Range: 210mm x 130mm Working Distance: 150 ~ 400 mm Minimum Scan Volume: 20×20×20 (mm) Scan Speed: Up to 10 fps Light Source: Class 1 infrared laser Alignment: Feature, marker and color Press Button: Yes Output Format: PLY, OBJ, STL Texture Scan: Yes Special Object Scanning: For shiny black, transparent and highly reflective objects, please use a 3D Scanning spray powder Outdoor Scanning: The cover is needed to avoid interference of intense light. please use a 3D Scanning spray powder Printable Data Output: Able to export 3D model directly to 3D printing Required Configurations: Windows 810, 64-bit, Android, iOS, MAC Wi-Fi & Bluetooth: 2.4GHz Connector Type: USB 3.0 Micro-B data port,USB Type-A cable,USB Type-C cable

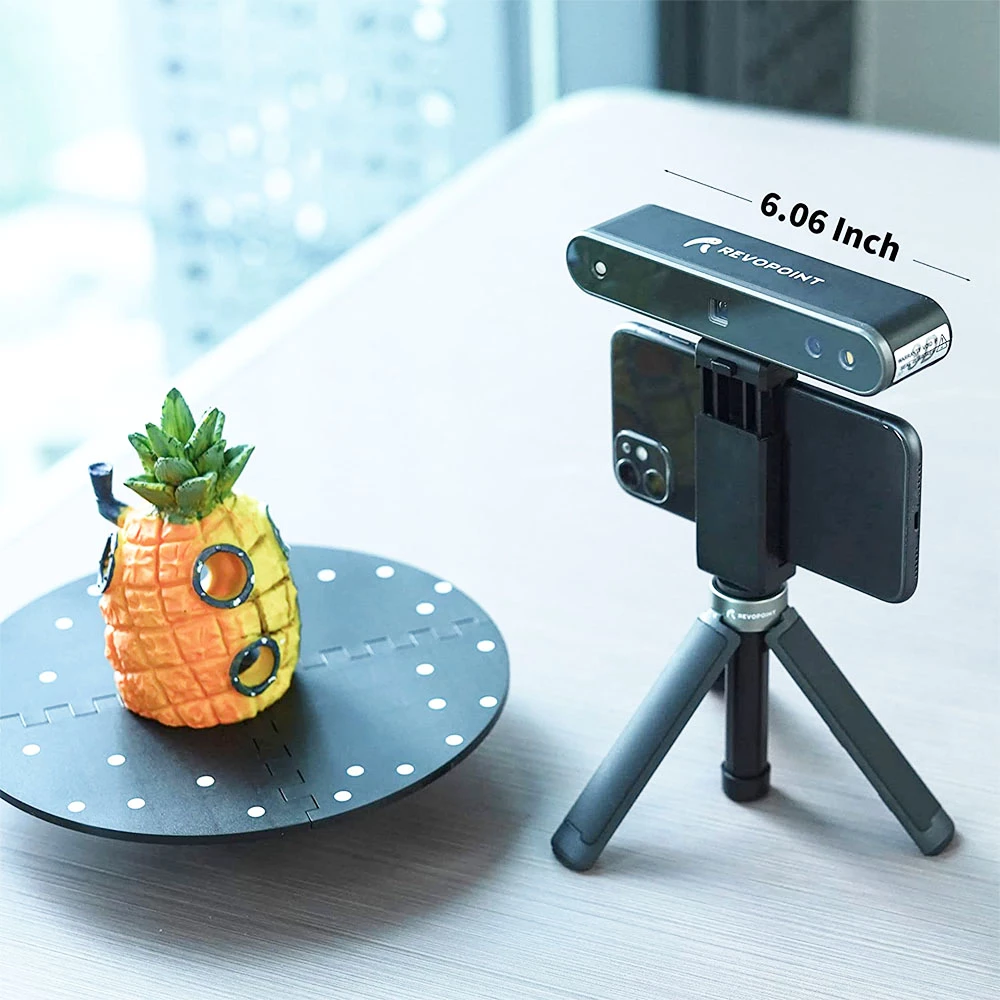

Weight & Size	Product Weight: 0.195kg Package Weight: 1.3kg Product Size(L x W x H): 154.6×38.2×25.6mm Package Size(L x W x H): 250x270x80mm
Package Contents	1 x POP 2 3D scanner 1 x Tripod 1 x Quick Setup Kits 1 x USB A/C 1 x Phone Holder 1 x 2-in-1 Mobile Cable  1 x User Manual
