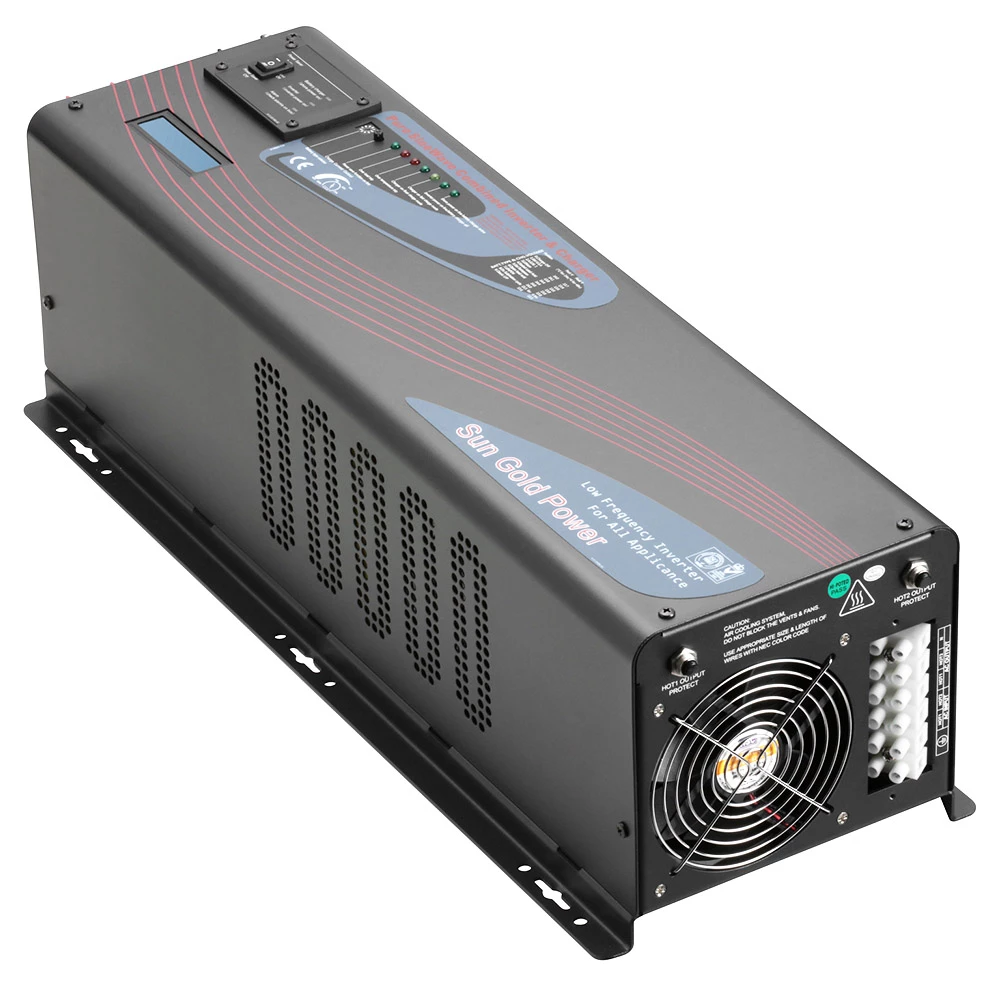

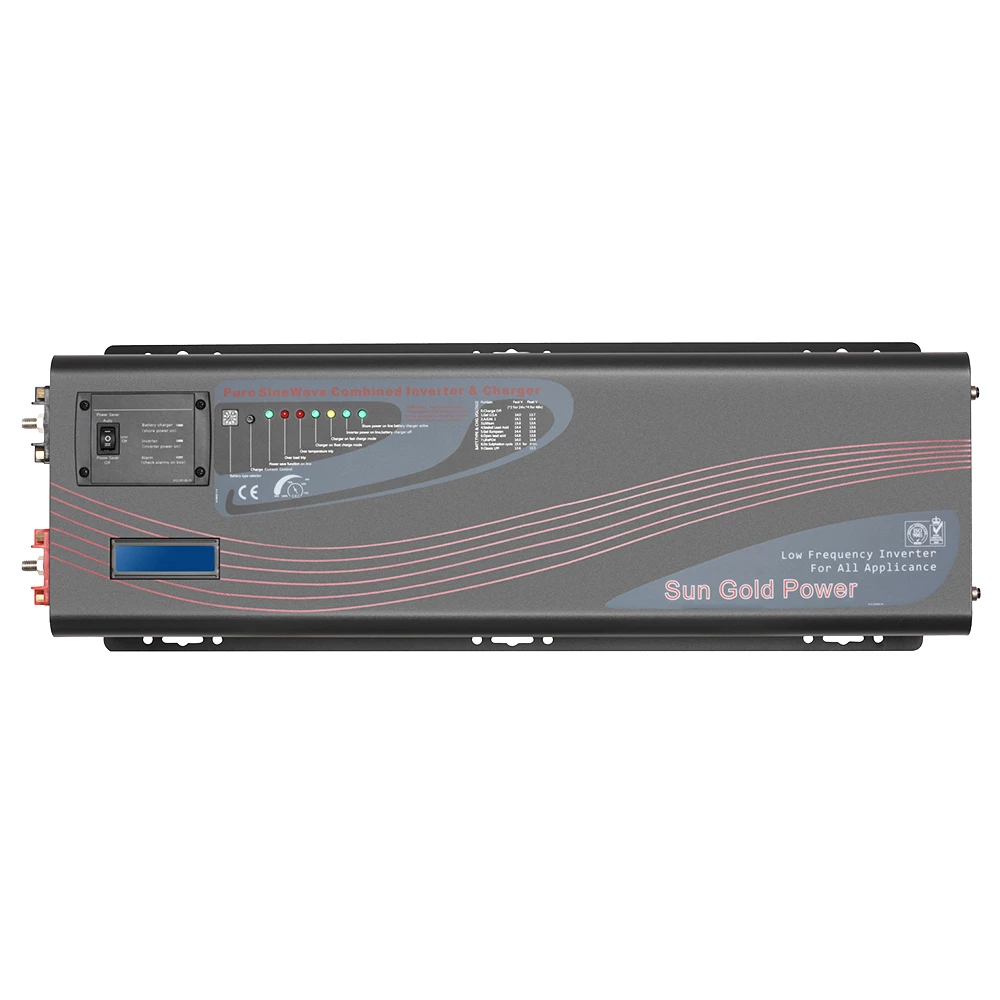

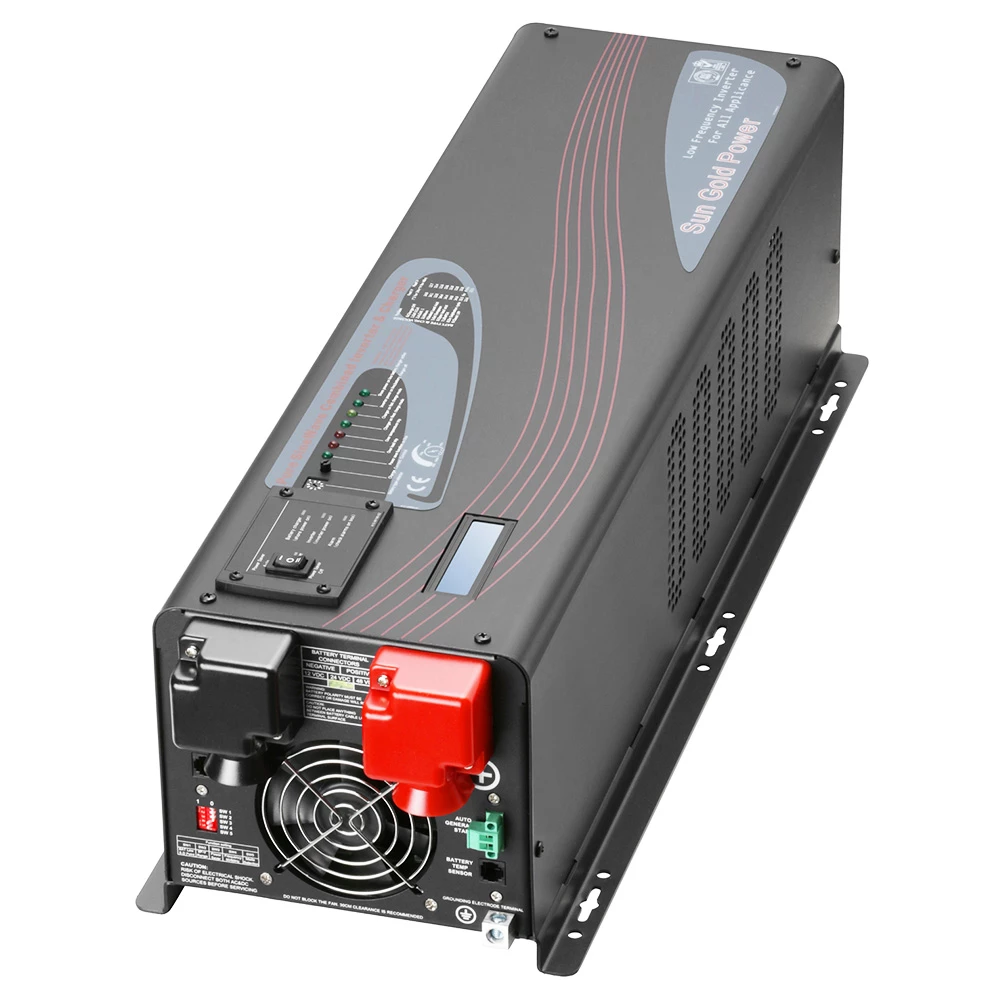

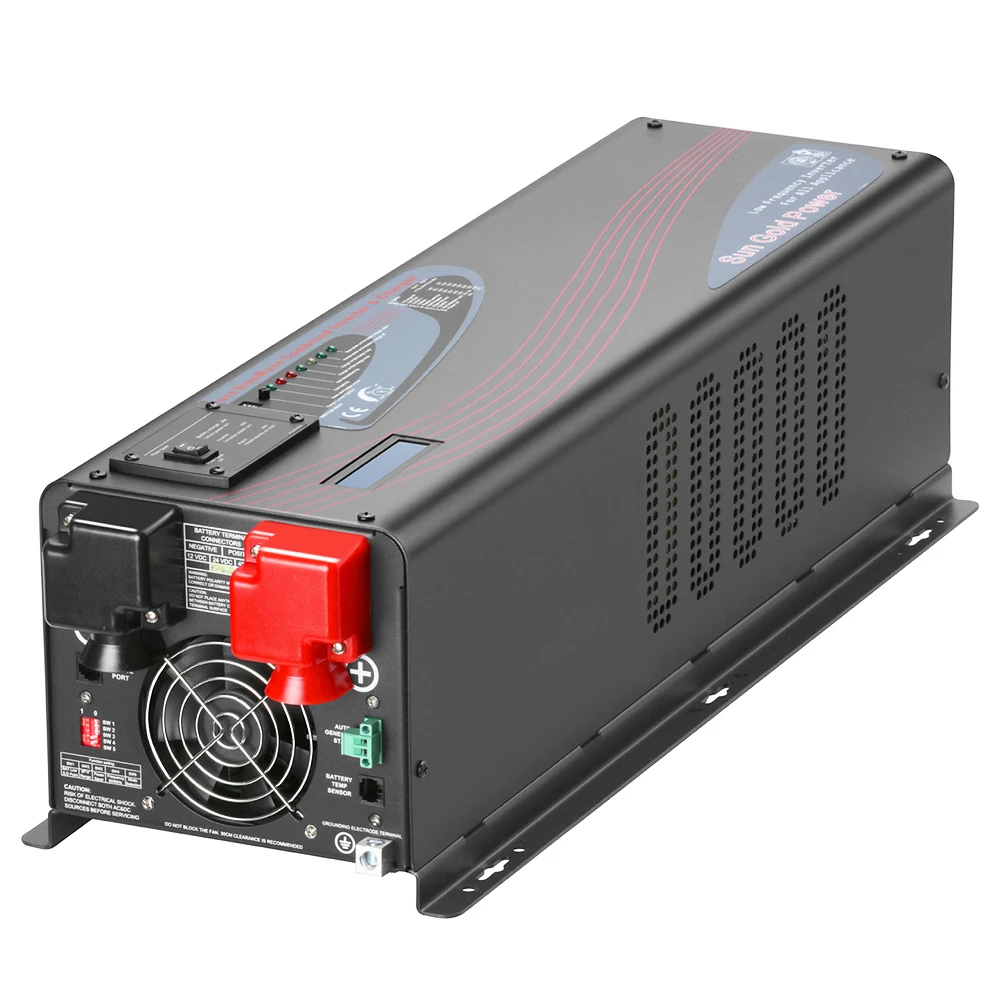

SunGoldPower 4000W 48V DC Pure Sine Wave Inverter, Low Frequency, 240V AC Input,120V AC / 240V AC Output, Split 50/60 Hz, with Battery Charger, Off-Grid, 12000W Peak, Black

Highlights

This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. low frequency, low Idle Current, BTS cable, remote control.

The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

Auto Gen Start: The inverter can start up a generator when the battery voltage goes low. and turn the generator off after battery charging is finished.

Specification

General	Brand: SunGoldPower  Type: PURE SINE WAVE INVERTER
Specification	Inverter Output: *Continuous Output Power: 4000W *Surge Rating: 12000W (20 Seconds) *AC Output: AC 120V and AC 240V *AC Input: 240V *Output Wave: Pure Sine Wave (bypass mode) *Typical Transfer Time: 10ms (MAX) *Nominal Efficiency: >88% DC Input: *Nominal Input Voltage: 48.0Vdc *Minimum Start Voltage: 40.0Vdc *Low Battery Alarm: 42.0Vdc-44.0Vdc *Low battery Trip: 40.0Vdc-42.0Vdc (select by SW1) *High Voltage Alarm: 64.0Vdc *Low battery Voltage Restart: 52Vdc *Idle Consumption: 48W *Power Saver Mode Idle Consumption: 19W AC Charger : *Charger Rate: 40+/-5A *AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2) *Over Charge Protection Shutdown:62.8V *Selectable Charge Setting based on battery type *Adjustable charge current: off 0%-100% *3-step intelligent battery charger
Weight & Size	Unit Weight: 55LB Unit Size: 22 x 9.1 x 7.5 inch Shipping Weight: 64 LB Shipping Size: 27 x 13.4 x 13 inch
Package Contents	1 x PURE SINE WAVE INVERTER 1 x Charger 1 x User Manual
