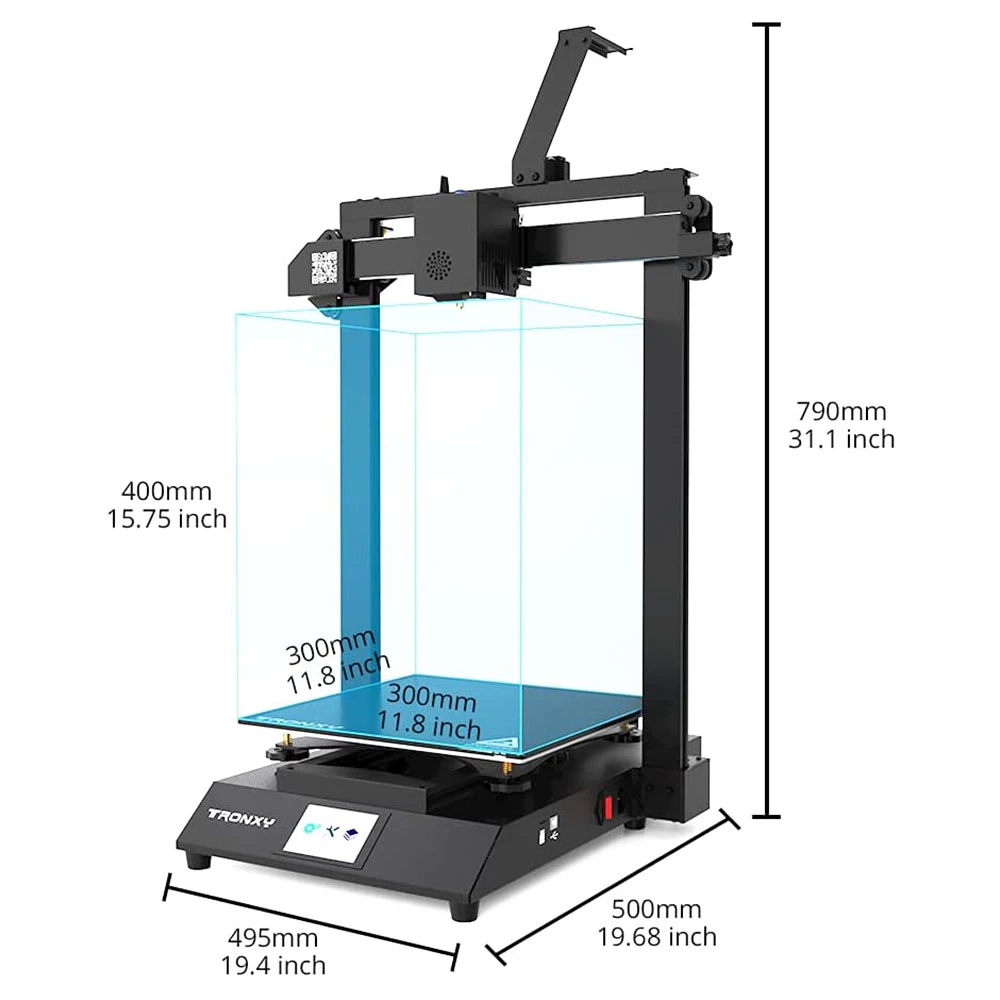

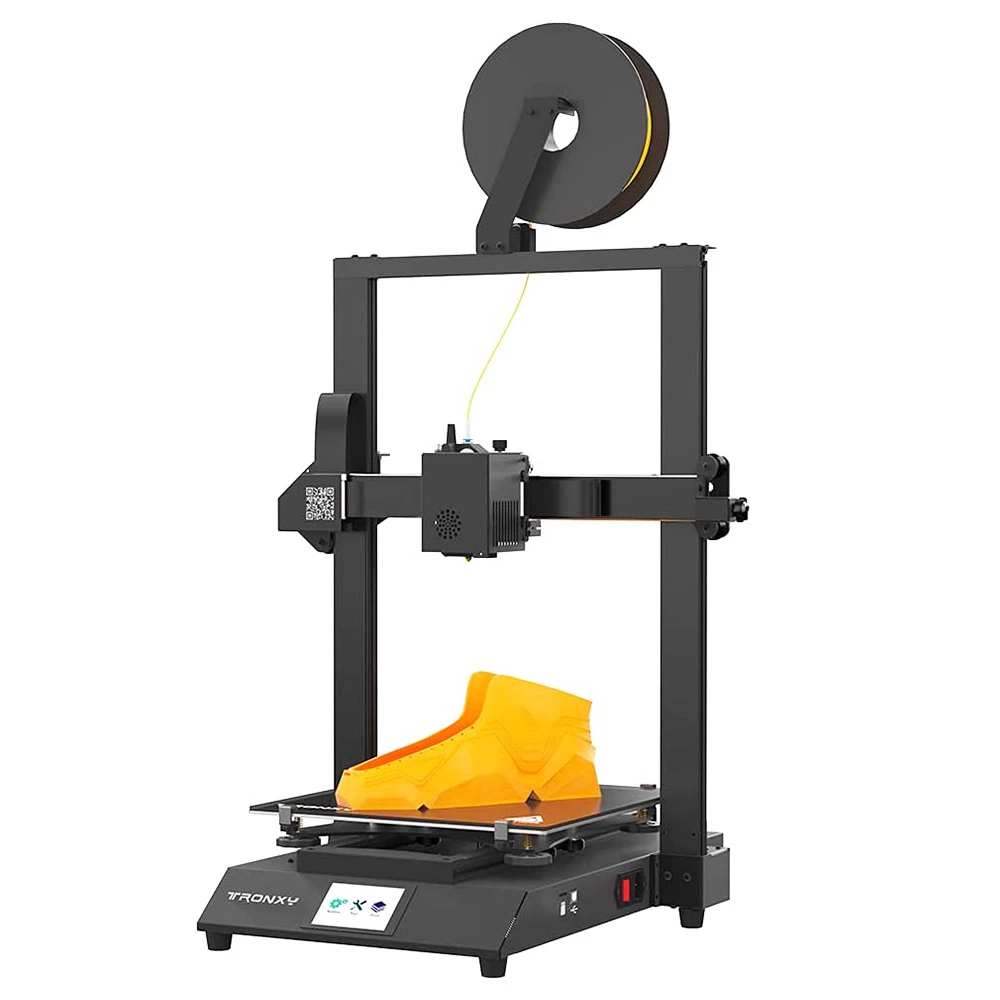

TRONXY XY-3 Pro V2 Direct Drive 3D Printer 300x300x400mm Upgraded BMG Extruder 3D Printer Fast Assembly with Glass Platform

Highlights

[BMG Extruder] Upgrade Dual Drive Extruder, sturdy, durable and wear resistant.compatible with 1.75mm flexible filament, such as TPU/TPE,and other filament, like PLA/ABS/PETG etc.With 3:1 deceleration torque, high precision extruder.

[New Upgrade TR Sensor + Lattice Glass Heat bed Plate] making leveling easier and taking models more convenient,XY-3 PRO V2 with new upgraded leveling sensor black TR sensor, and removable lattice glass plate.Compared with the old version of the blue sensor, the new one can support more types of platforms.

[Adjustable XY axis belt structure] manual adjustment of belt tension:Just twist the nut, XY axis belt supports manual adjust, easy to use,no need to disassemble and take out the belt,easy to operate.

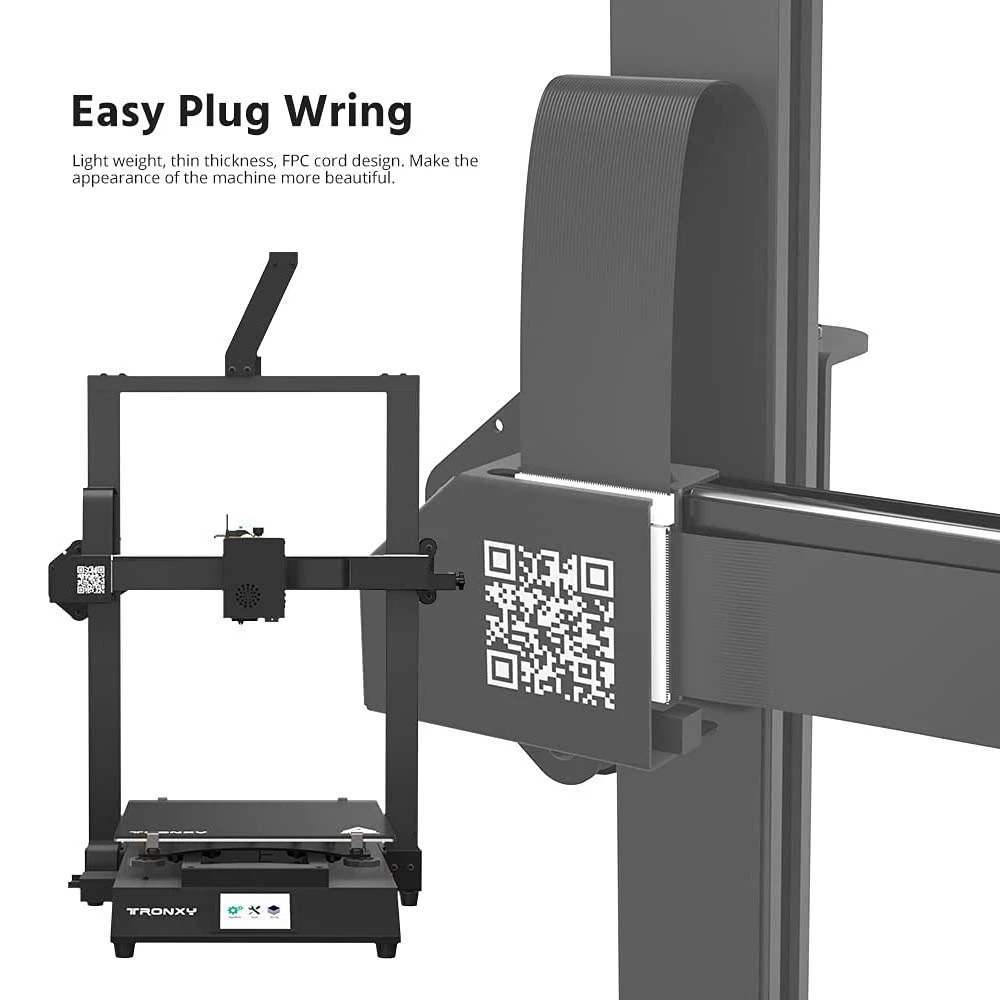

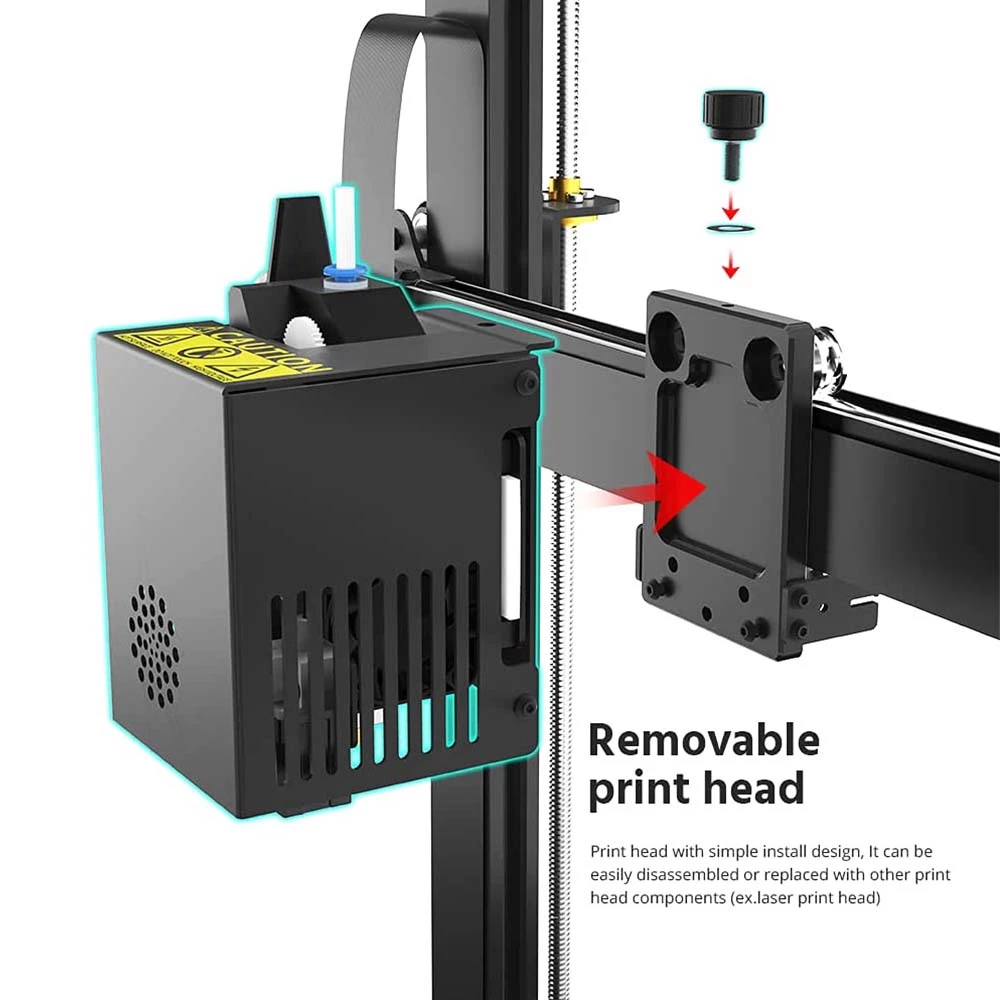

[Remova ble Print Head] Easy to clean up,Simple install design,Easily disassembled or replaced,Other print head components are optional(ex.laser print head).FPC flexible cable design–black FPC cable is integrated with the machine, neat and beautiful.

Direct Drive XY-3 PRO V2 3d printer advantage:

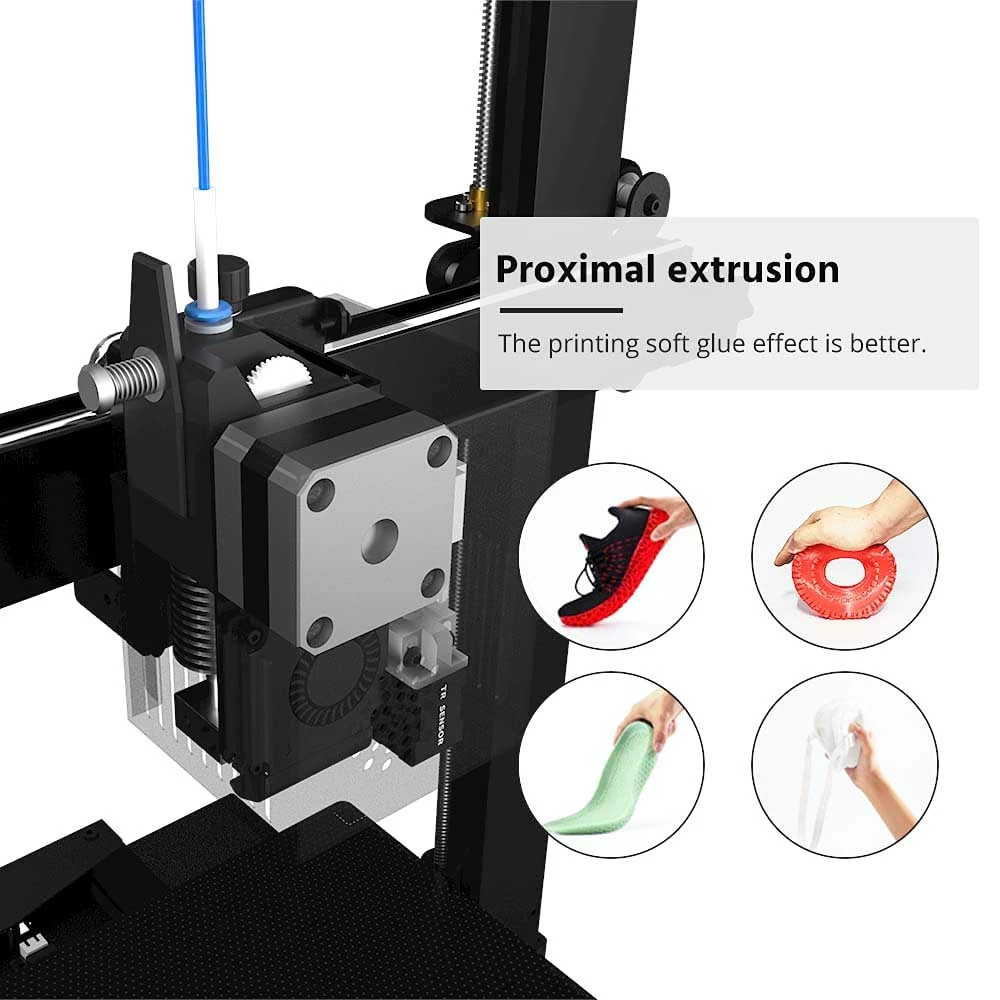

1. The BMG near-end print head can print soft rubber consumables (such as TPU/TPR), and is not limited by the type of consumables (TPR consumables are a kind of rubber that is softer than TPU)

2. The feeding distance is short, the resistance is small, and the torque requirement of the stepping motor for extrusion is small.

3. The extruder and the nozzle do not need to be connected with Teflon pipes and pneumatic connectors, which reduces failures compared with remote extrusion.

4. filament and Teflon pipes have a certain degree of flexibility, and the general pneumatic joints also have a certain amount of movement space, so the required withdrawal distance and speed are greater, and the short-distance extrusion and withdrawal are more accurate.

5. The distance between the extruder and the nozzle is close, and the material change is easier.

TR Auto Leveling Sensor Features:

1.The new upgraded version of the automatic leveler.can sense opaque substances.

2.Induction Medium:Non-transparent object.

BLUE VS BLACK:

1.The old blue Auto level sensor can only detect metal, but the newly upgraded black Auto level sensor detector solves this problem . can detect platforms with opaque materials such as lattice glass and magnets.

Lattice Glass Advantage:

1. Has strong adhesion,

2. The characteristics of easy removal and cleaning of printed products.

Resume Print Function:

No fear of accidental power failure or filament failure, after reconnecting the power or filament, printing can be resumed.

Filament Detector:

Stop automatically and sound alert when the filament is used up or the filament is broken.

Simple assembly:

1. Semi-assembled kit

2. Only need to tighten the screws to complete the installation

BLUE VS BLACK:

The old blue Auto level sensor can only detect metal, but the newly upgraded black Auto level sensor detector solves this problem . can detect platforms with opaque materials such as lattice glass and magnets.

Specification
